Question: please show steps and calculations. Circle answer please. I am not sure how to solve homework. Problem 1(30pts) : The plank below (6 kg. 10

please show steps and calculations. Circle answer please. I am not sure how to solve homework.

please show steps and calculations. Circle answer please. I am not sure

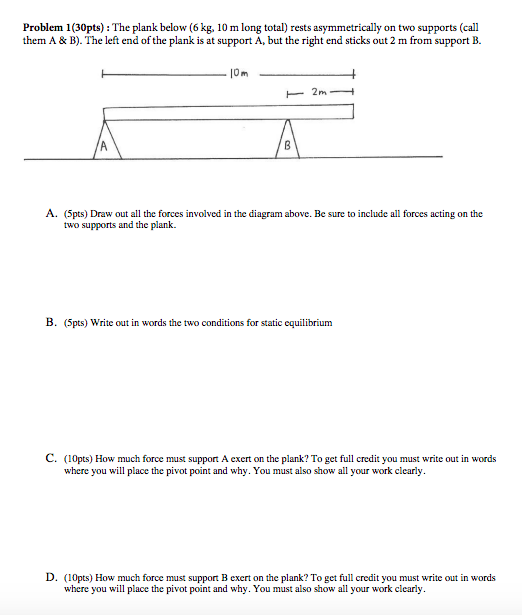

Problem 1(30pts) : The plank below (6 kg. 10 m long total) rests asymmetrically on two supports (call them A & B). The left end of the plank is at support A, but the right end sticks out 2 m from support B. 10m 2m A. (5pts) Draw out all the forces involved in the diagram above. Be sure to include all forces acting on the two supports and the plank. B. (5pts) Write out in words the two conditions for static equilibrium C. (10pts) How much force must support A exert on the plank? To get full credit you must write out in words where you will place the pivot point and why. You must also show all your work clearly. D. (10pts) How much force must support B exert on the plank? To get full credit you must write out in words where you will place the pivot point and why. You must also show all your work clearly
