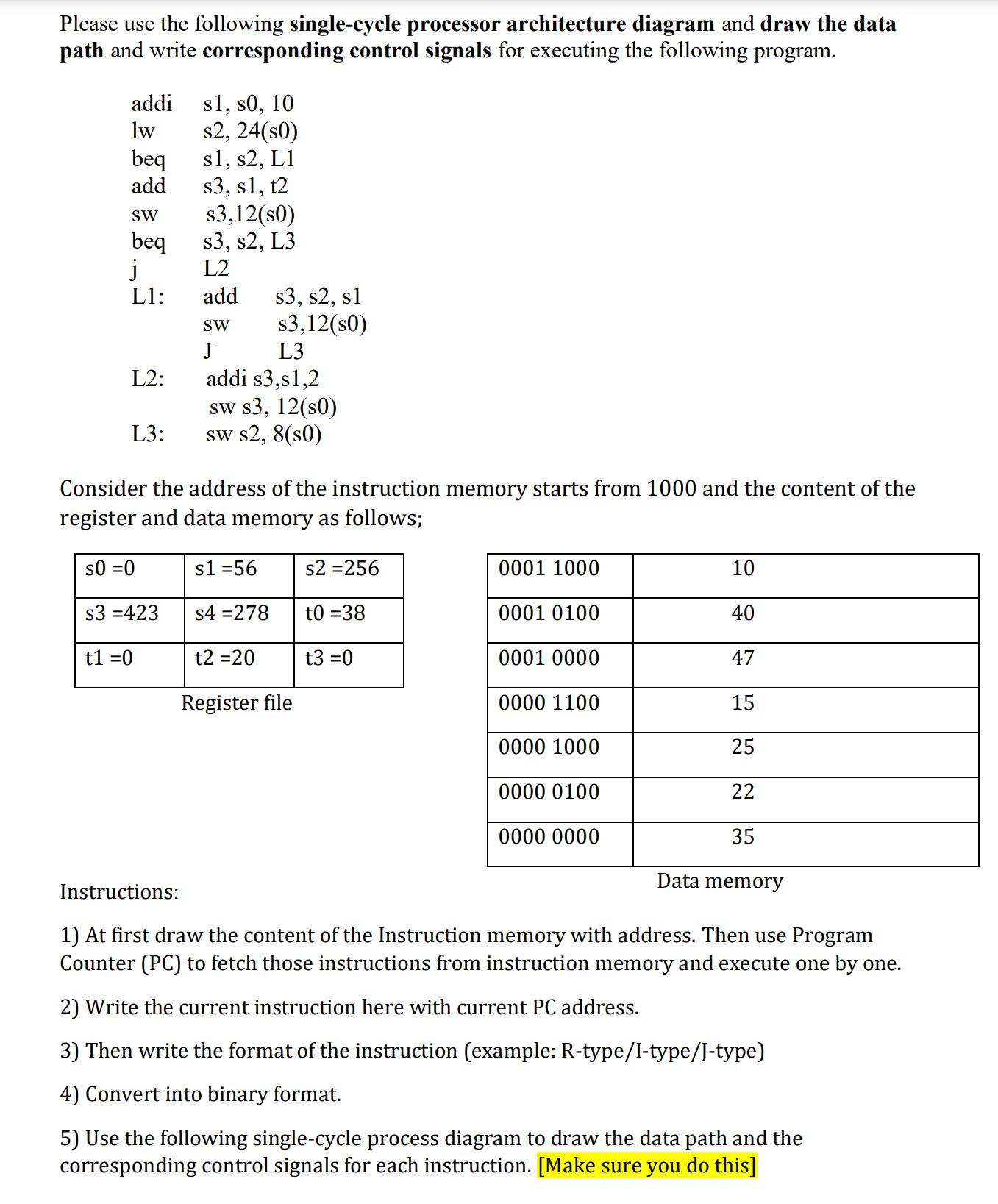

Please use the following single$-$cycle processor architecture diagram and draw the data

path and write corresponding control signals for executing the following program.

Consider the address of the instruction memory starts from $1000$ and the content of the

register and data memory as follows;

Register file

Data memory

Instructions:

At first draw the content of the Instruction memory with address. Then use Program

Counter $($PC$)$ to fetch those instructions from instruction memory and execute one by one.

Write the current instruction here with current PC address.

Then write the format of the instruction $($example: R$-$type$/$I$-$type$/$J$-$type$)$

Convert into binary format.

Use the following single$-$cycle process diagram to draw the data path and the

corresponding control signals for each instruction. $[$Make sure you do this$]$
