Question: Problem 1 6 ( 8 pts ) . The fluid in the tank is water. The width of the surface into the page is 5

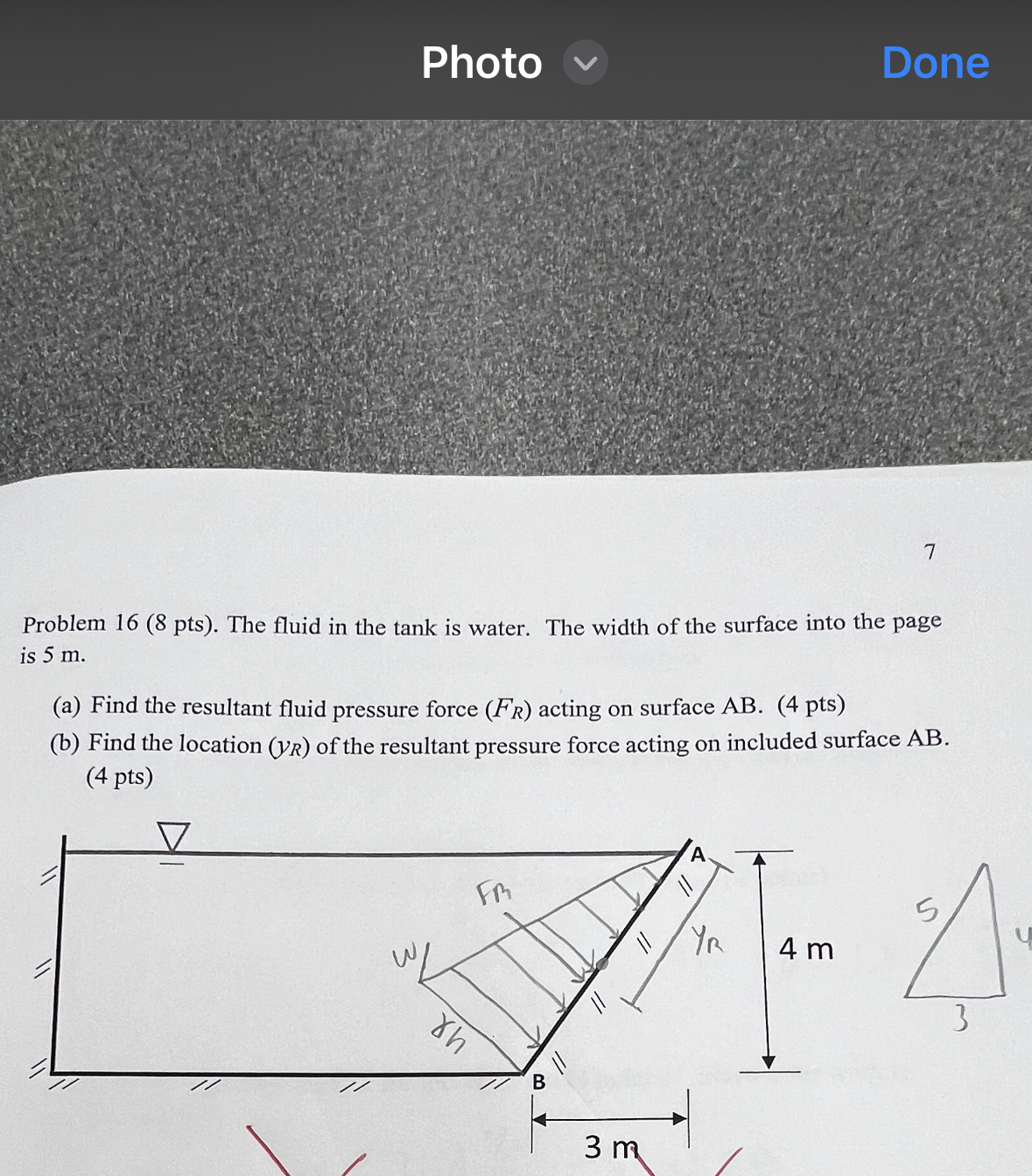

Problem 16(8 pts). The fluid in the tank is water. The width of the surface into the page
is 5 m .
(a) Find the resultant fluid pressure force (FR) acting on surface AB .(4 pts)
(b) Find the location (yR) of the resultant pressure force acting on included surface AB.
(4 pts)
Problem 1 6 ( 8 pts ) . The fluid in the tank is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
