Question: Problem 1 Consider a project with the following activities details: Immediate Task Duration Predecessors (weeks) None A 3 B None 5 A 2 D D

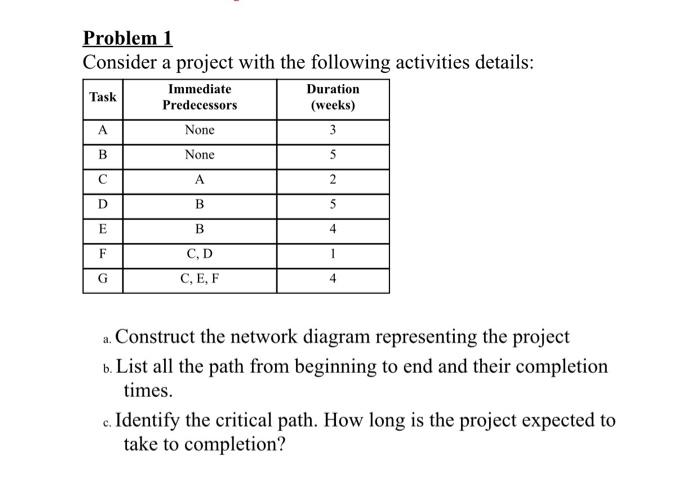

Problem 1 Consider a project with the following activities details: Immediate Task Duration Predecessors (weeks) None A 3 B None 5 A 2 D D 5 E B 4 F C,D C, E, F G G a Construct the network diagram representing the project b. List all the path from beginning to end and their completion times. c. Identify the critical path. How long is the project expected to take to completion
