Question: Problem 1 : Consider the figure below. The velocity profiles at the upstream end ( surface 1 ) and at the downstream end ( surface

Problem 1:

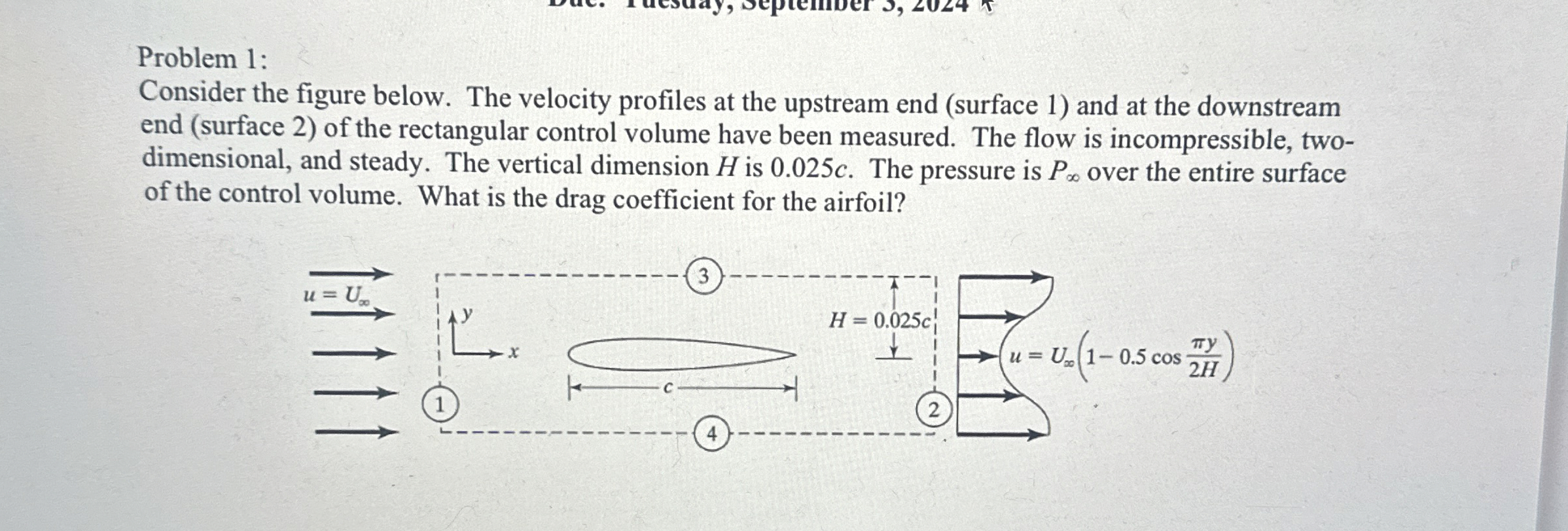

Consider the figure below. The velocity profiles at the upstream end (surface 1) and at the downstream end (surface 2) of the rectangular control volume have been measured. The flow is incompressible, twodimensional, and steady. The vertical dimension H is 0.025c. The pressure is P over the entire surface of the control volume. What is the drag coefficient for the airfoil?
Problem 1 : Consider the figure below. The

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
