Question: Problem - 2 ( 2 0 % ) The floor system of a classroom shown below. The floor slab rests on three beams that

Problem

- 2 (20 \ %)

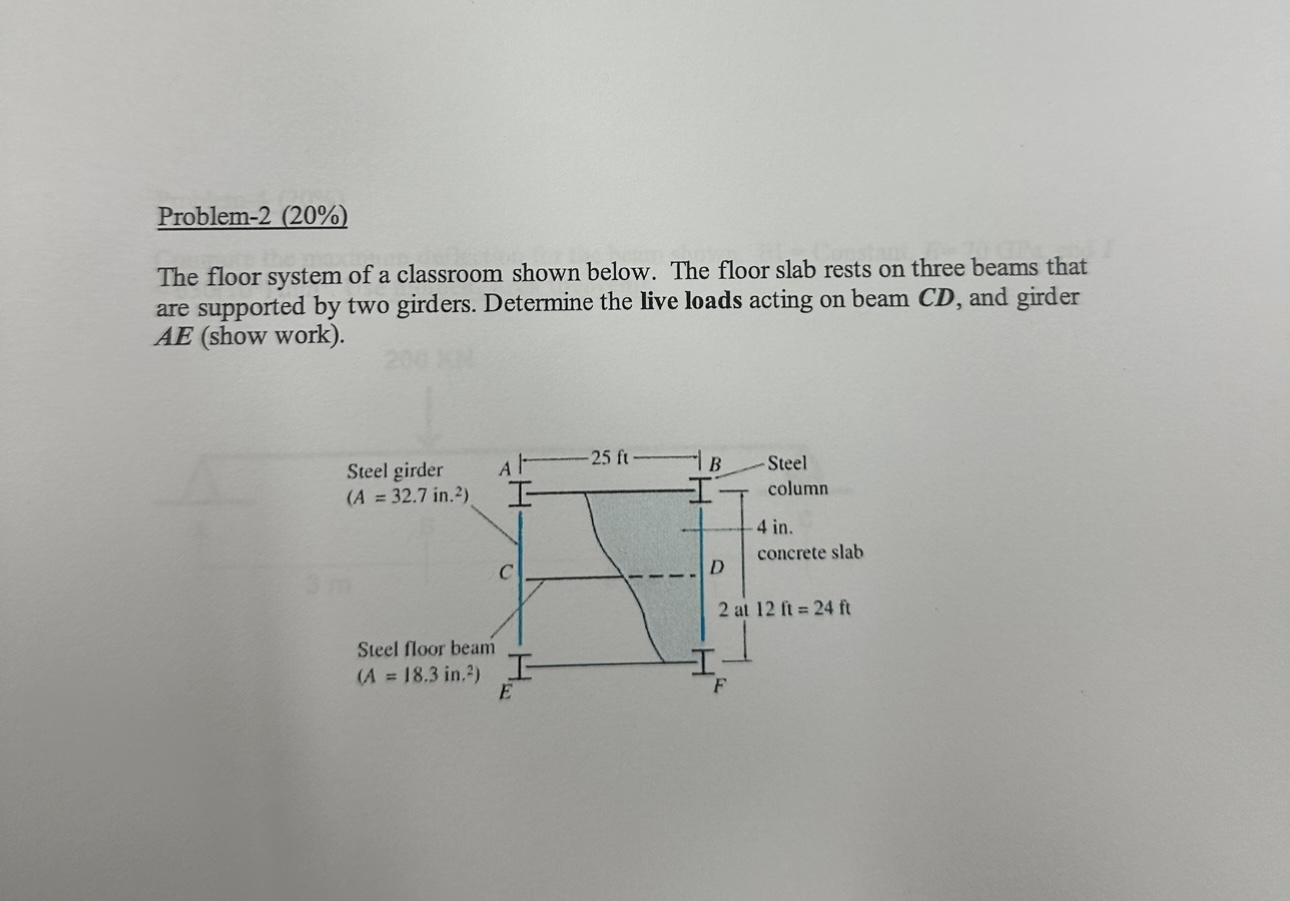

The floor system of a classroom shown below. The floor slab rests on three beams that are supported by two girders. Determine the live loads acting on beam

\ (

C D

\),

and girder

\ (\

boldsymbol

{

A E

} \) (

show work

) .

$Problem - 2 ( 2 0 \ % ) The floor system of a$

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
