Question: Problem 2 a ) Replace the loading on the frame by a single resultant force. b ) Determine where its line of action intersects a

Problem 2

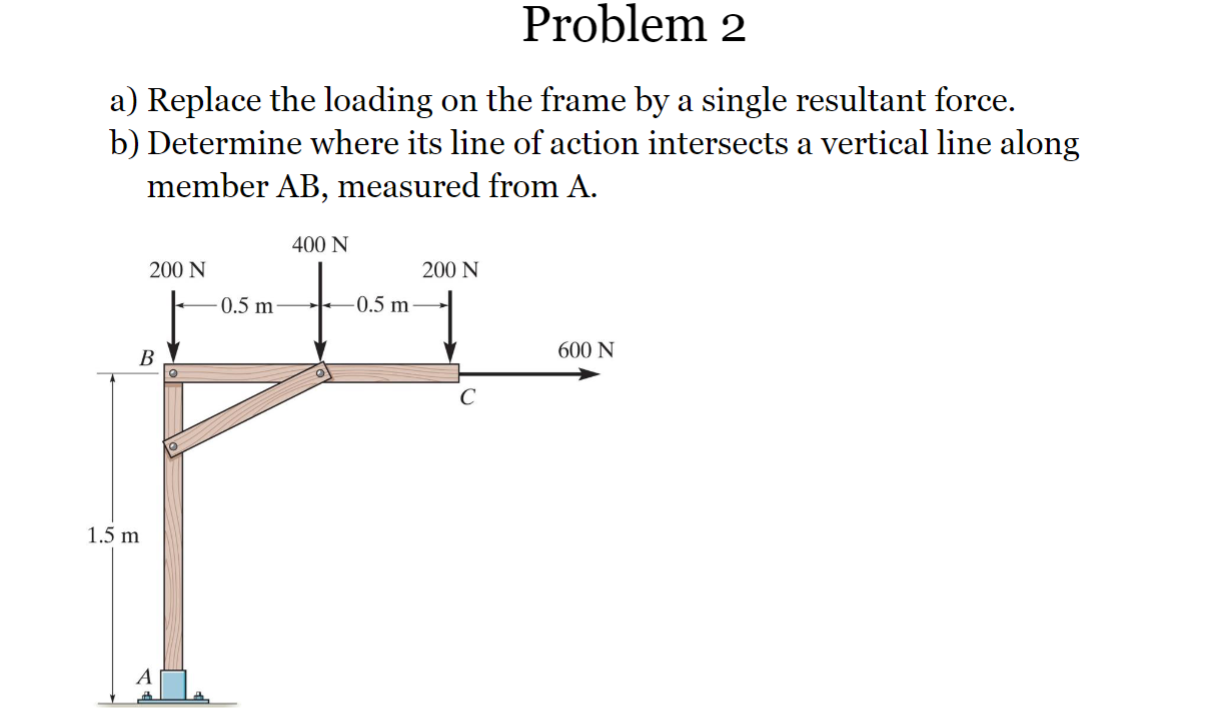

a) Replace the loading on the frame by a single resultant force.
b) Determine where its line of action intersects a vertical line along member AB , measured from A .
Problem 2 a ) Replace the loading on the frame by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member AB, measured from A. Given: F1 = 500 N a = 3 m F2 = 300 N b = 2 m c = 1 m F3 = 250 N d...
