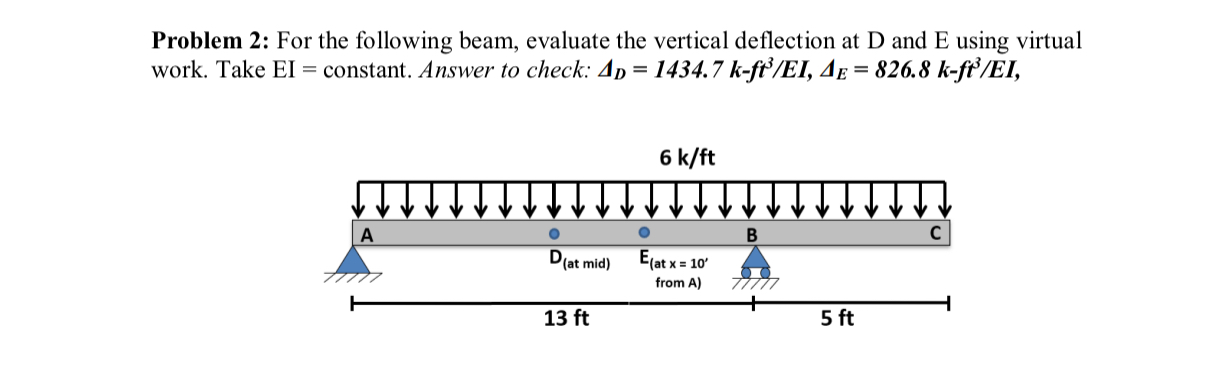

Question: Problem 2 : For the following beam, evaluate the vertical deflection at D and E using virtual

Problem 2: For the following beam, evaluate the vertical deflection at D and E using virtual
Problem 2 : For the following beam, evaluate the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Problem 2 : For the following beam, evaluate the vertical deflection at D and E using virtual work. Take EI = constant. Answer to check: coming soon. 6 k f t P

Q:

Problem 2 : A four - span prismatic beam over supports A , B , C , D , and E is fixed at the right end ( named E ) and is supported on rollers at all other supports ( at A , B , C , and D ) . The...

Q:

Problem 2 : Assume EI = 2 , 0 0 0 , 0 0 0 kips - ft ^ 2 , and determine the vertical deflection at point D , which is the midpoint of the following beam, by using the Conjugate - Beam Method ( 2 5...

Q:

Problem \ # 1 : ( 7 0 points ) The beam \ ( A B C \ ) of length \ ( 2 L \ ) is fixed ( i . e . clamped ) at point \ ( A \ ) and supported by a roller at \ ( B \ ) , as shown in Figure 1 ( on the...

Q:

Your work should be neatly presented and easy to read. Your logic should be clear. You should leave space between equations or mathematical calculations, so that they are easy to read. Your logic...

Q:

Given: The following beam is used for Problems 1 , 2 , and 3 . M L = 1 2 f t . E I = ( ) 2 Problem 1 . Use the Double Integration Method to: A . Derive all deflection functions, y ( x ) and slope...

Q:

Problem # 1 : ( 7 0 points ) The beam ABC of length 2 L is fixed ( i . e . clamped ) at point A and supported by a roller at B , as shown in Figure 1 ( on the following page ) . The beam is loaded by...

Q:

The beam ABC of length 2 L is fixed ( i . e . clamped ) at point A and supported by a roller at B , as shown in Figure 1 ( on the following page ) . The beam is loaded by an upward concentrated force...

Q:

The structural steel beam shown below has a rectangular cross - section, a length l = 2 0 0 " , is subjected to an axial force, F = 2 0 , 0 0 0 lbs , and a transverse line pressure load of p = 2 lb /...

Q:

Answer with images from The software ANSYS. e . What is the maximum vertical deflection in the beam if F = 0 ? f . What is the maximum axial deflection in the beam ( Note: The maximum axial...

Q:
