Question: Problem 3 For the timber beam and loading shown below, determine the minimum required depth h , knowing that the grade of timber used has

Problem 3

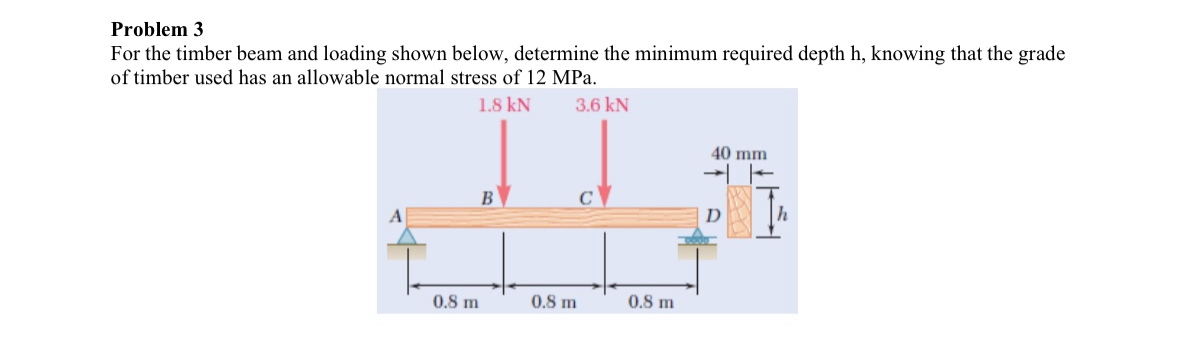

For the timber beam and loading shown below, determine the minimum required depth h, knowing that the grade of timber used has an allowable normal stress of 12MPa.
Problem 3 For the timber beam and loading shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

2-) a-) For the beam and loading shown, determine the minimum required width 'b', knowing that for the grade of timber used, allowable = 12 MPa. 2.4 kN 4.8 kN 7.2 kN b B C D A E 150 mm 0000 -1 m 1 m...

Q:

For the beam and loading shown, determine the minimum required width b, knowing that for the grade of timber used, all = 12 MPa and Tall = 832 kPa. (Round the final answer to two decimal places.) 2.4...

Q:

6 . 1 8 For the beam and loading shown, determine the minimum required width b , knowing that for the grade of timber used, a l l = 1 2 MPa and a l l = 8 2 5 kPa.

Q:

(2) For the beam and loading shown, determine the minimum required width b, knowing that for the grade of timber used, all = 12 MPa and T all = 825 kPa 2.4 kN 4.8 kN 7.2 kN B C D E 150 mm m- 1 m 1 m...

Q:

6.18 For the beam and loading shown, determine the minimum required width b, knowing that for the grade of timber used, all = 12 MPa and Tall 825 kPa. Tall= 2.4 kN 4.8 kN 7.2 kN B CV D 150 mm A 1 m...

Q:

For the beam and loading shown: (a) Draw complete shear and moment diagrams (b) Design the cross section of the beam, knowing that the grade of timber used has an allowable normal stress of 1,200psi...

Q:

For the beam and loading shown: (a) Draw complete shear and moment diagrams (b) Design the cross section of the beam, knowing that the grade of timber used has an allowable normal stress of 1,200 psi

Q:

For the beam and loading shown, design the cross section of the beam, knowing that the grade of timber used has an allowable normal stress of 14 MPa. 9 kN/m 4.0 m B 1.6 m C b 300 mm b = mm X

Q:

For the beam and loading shown, design the cross section of the beam, knowing that the grade of timber used has an allowable normal stress of 16 MPa. B 90 kN/m 3.2 m A d= mm X

Q:
