Problem $4\mathrm{.}4$ on page $153.$

$4\mathrm{.}4$ List the following values:

a$.$ For the direct cache example of Figure $4\mathrm{.}10$: address length, number of addressable

units, block size, number of blocks in main memory, number of lines in cache, size

of tag

b$.$ For the associative cache example of Figure $4\mathrm{.}12$: address length, number of

addressable units, block size, number of blocks in main memory, number of lines

in cache, size of tag

c$.$ For the two$-$way set$-$associative cache example of Figure $4\mathrm{.}15$: address length, num$-$

ber of addressable units, block size, number of blocks in main memory, number of

lines in set, number of sets, number of lines in eache, size of tag

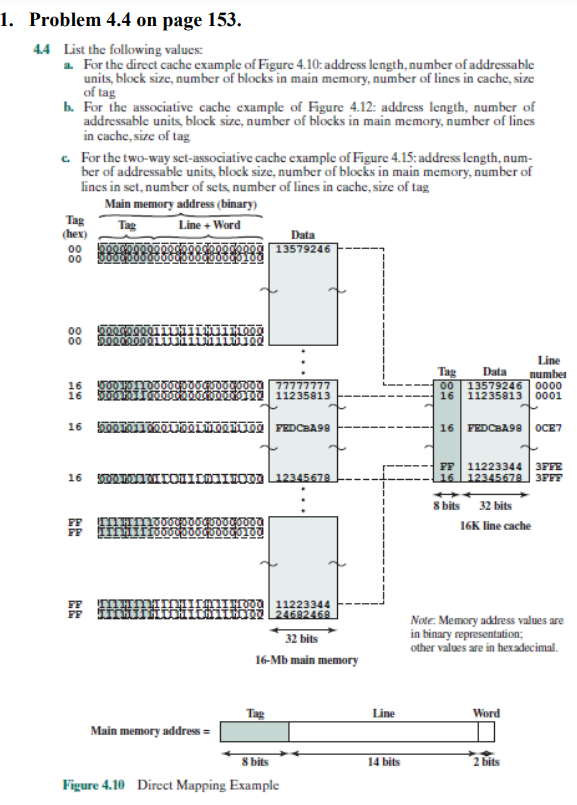

Figure $4\mathrm{.}10$ Direct Mapping Example
