Question: Problem 4 : The switch in the circuit shown below has been closed for a long time and is opened at t = 0 .

Problem 4:

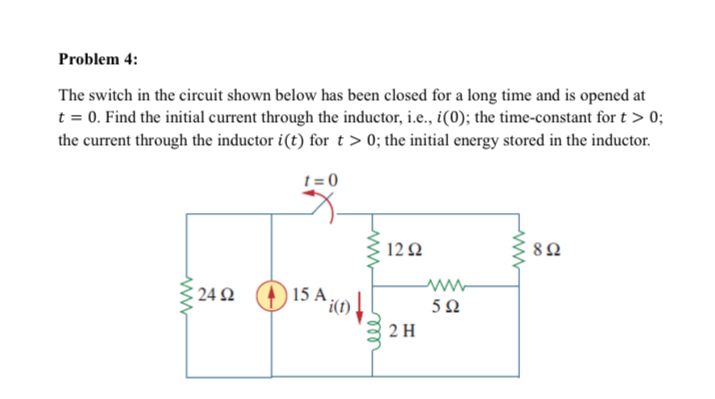

The switch in the circuit shown below has been closed for a long time and is opened at t=0. Find the initial current through the inductor, i.e.,i(0); the time-constant for t>0; the current through the inductor i(t) for t>0; the initial energy stored in the inductor.
Problem 4 : The switch in the circuit shown below

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
