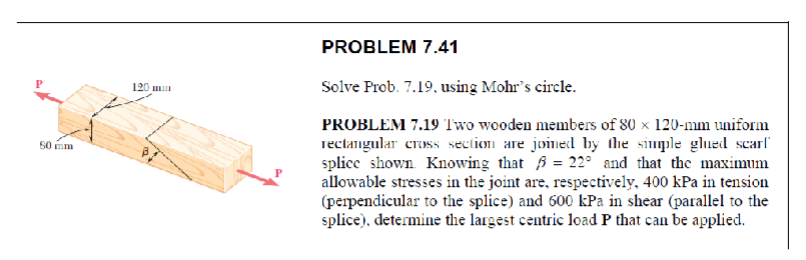

PROBLEM $7\mathrm{.}41$Solve Prob. $7\mathrm{.}19,$ using Mohr's circle.PROBLEM $7\mathrm{.}19$ Two wooden members of $80$ x $120-$mm uniform rectangular cToss sectio are jmed by the sinple glued scarl splice shown Knowing that $=22\backslash$deg and that the maximum allowable stresses in the joint are, respectively, $400$ kPa in tension $($perpendicular to the splice$)$ and $600$ kPa in shear $($parallel to the splice$).$ determine the largest centric load P that can be applied.PROBLEM $7\mathrm{.}41$

Solve Prob. $7\mathrm{.}19,$ using Mohr's circle.

PROBLEM $7\mathrm{.}19$ 'Iwo wooden members of $80120-1mm$ uniform

rectangular cross section are joined by the simple glued scarl

splice shown. Knowing that $=22$ and that the maximum

allowable stresses in the joint are, respectively, $400$kPa in tension

$($perpendicular to the splice$)$ and $600$kPa in shear $($parallel to the

splice$),$ determine the largest centric load $P$ that can be applied.
