PROBLEM

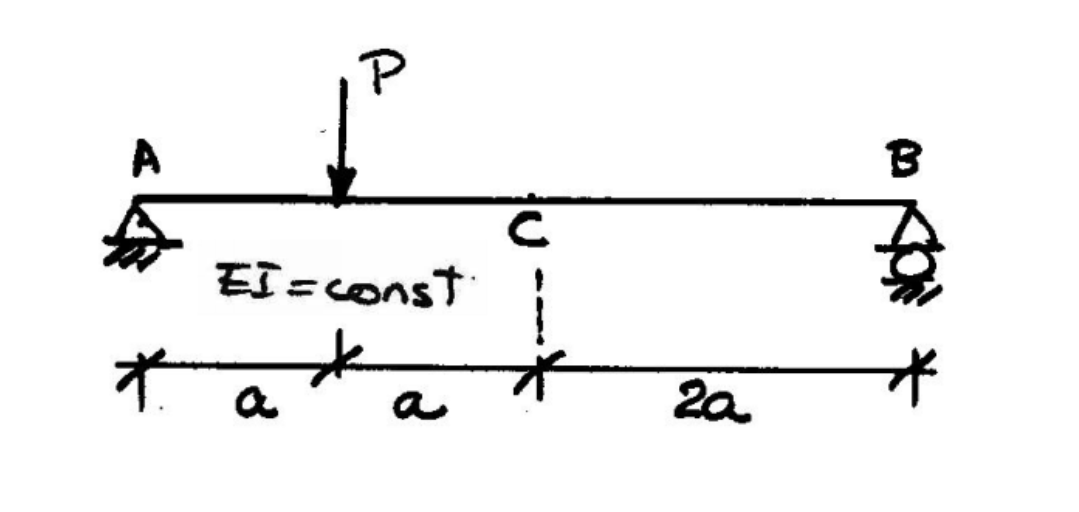

For the beam below, take P$=6$kN$,$ a$=1\mathrm{.}5$m$.$ Use the Moment$-$Area Method to solve these parts of the problem:

PART $1$

The slope at A is mostly near$\_\_\_\_\_$kN$-$m$^2/$EI

$($Select from one the following$)$

Option A: $46$ CW

Option B: $0$

Option C: $12$ CW

Option D: $25$ CCW

Option E: $46$ CCW

Option F: $12$ CCW

Option G: $25$ CW

PART $2$

The deflection at C is mostly near$\_\_\_\_\_$kN$-$m$^3/$EI

$($Select from one the following$)$

Option A: $17$ upward

Option B: $35$ upward

Option C: $20$ upward

Option D: $0$

Option E: $35$ downward

Option F: $17$ downward

Option G: $20$ downward
