Question: Problems 1. Water flows through the horizontal branching pipe shown below. Calculate: a) The water speed at section (2). b) The pressure at section

Problems 1. Water flows through the horizontal branching pipe shown below. Calculate:

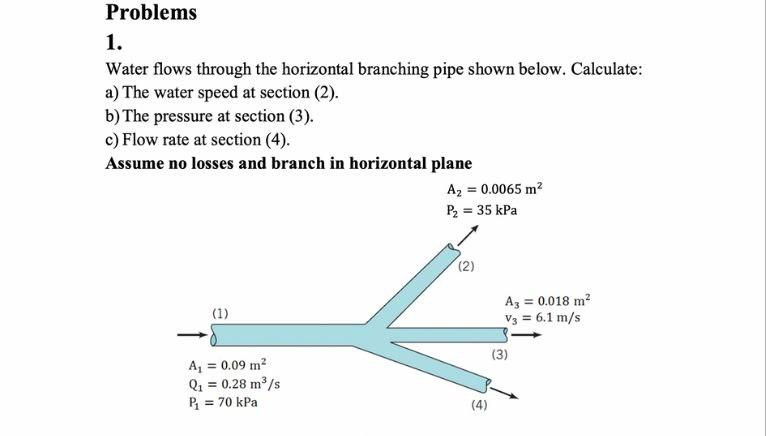

Problems 1. Water flows through the horizontal branching pipe shown below. Calculate: a) The water speed at section (2). b) The pressure at section (3). c) Flow rate at section (4). Assume no losses and branch in horizontal plane (1) A = 0.09 m Q = 0.28 m/s P = 70 kPa A = 0.0065 m P = 35 kPa (2) (4) A = 0.018 m (3) V3 = 6.1 m/s
