Program Management:

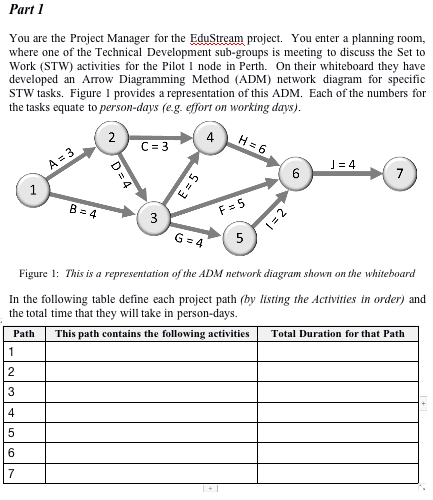

Part 1 You are the Project Manager for the EduStream project. You enter a planning room, where one of the Technical Development sub-groups is meeting to discuss the Set to Work (STW) activities for the Pilot 1 node in Perth. On their whiteboard they have developed an Arrow Diagramming Method (ADM) network diagram for specific STW tasks. Figure 1 provides a representation of this ADM. Each of the numbers for the tasks equate to person-days (eg. effort on working days). 2 4 H=6 C = 3 A = 3 J = 4 7 D=4 E = 5 1 3 B = 4 3 F=5 1 = 2 G-4 5 Figure 1: This is a representation of the ADM network diagram shown on the whiteboard In the following table define each project path (by listing the Activities in order) and the total time that they will take in person-days. This path contains the following activities Path Total Duration for that Path 1 2 3 4 5 6 7 Part 2 What is the Critical Path illustrated by the ADM network diagram illustrated in Figure 1 and how long does it currently take in terms of person-days? To answer this question, define this in terms of the path number in the preceding table, list the Page 2 IT Project Management Revision Example 1 Activities involved in the path and make sure that you provide the total number of person-days for the path. Type your answer in the following cell
