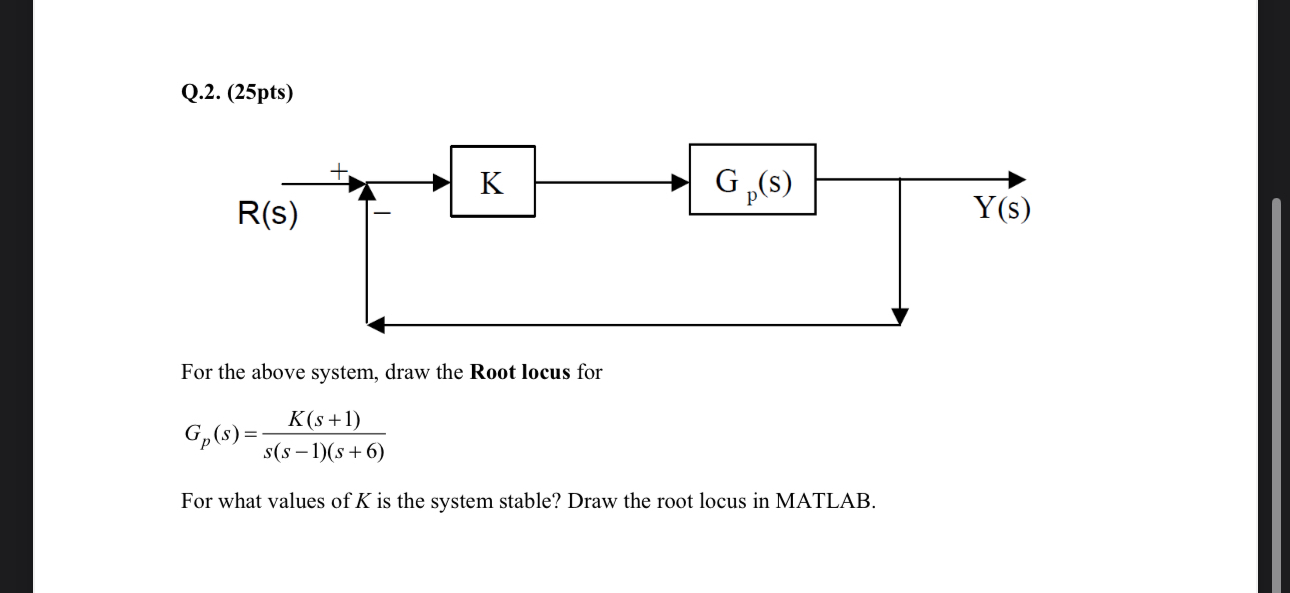

Question: Q . 2 . ( 2 5 pts ) For the above system, araw the 0 t 1 ocus tor G p ( s )

Q.2.(25pts)
For the above system, araw the 0t 1ocus tor
Gp(s)=K(s+1)s(s-1)(s+6)
For what values of K is the system stable? Draw the root locus in MATLAB and DRAW MATLAB GRAPHICS.
Q.2.(25pts) For the above system, araw the 0t 1ocus tor Gp(s)=K(s+1)s(s-1)(s+6)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
