Question: Q 7 : Write the truth table of Full Adder with inputs F ( ABC ) and Outputs Sum and Carry. Implement the Full adder

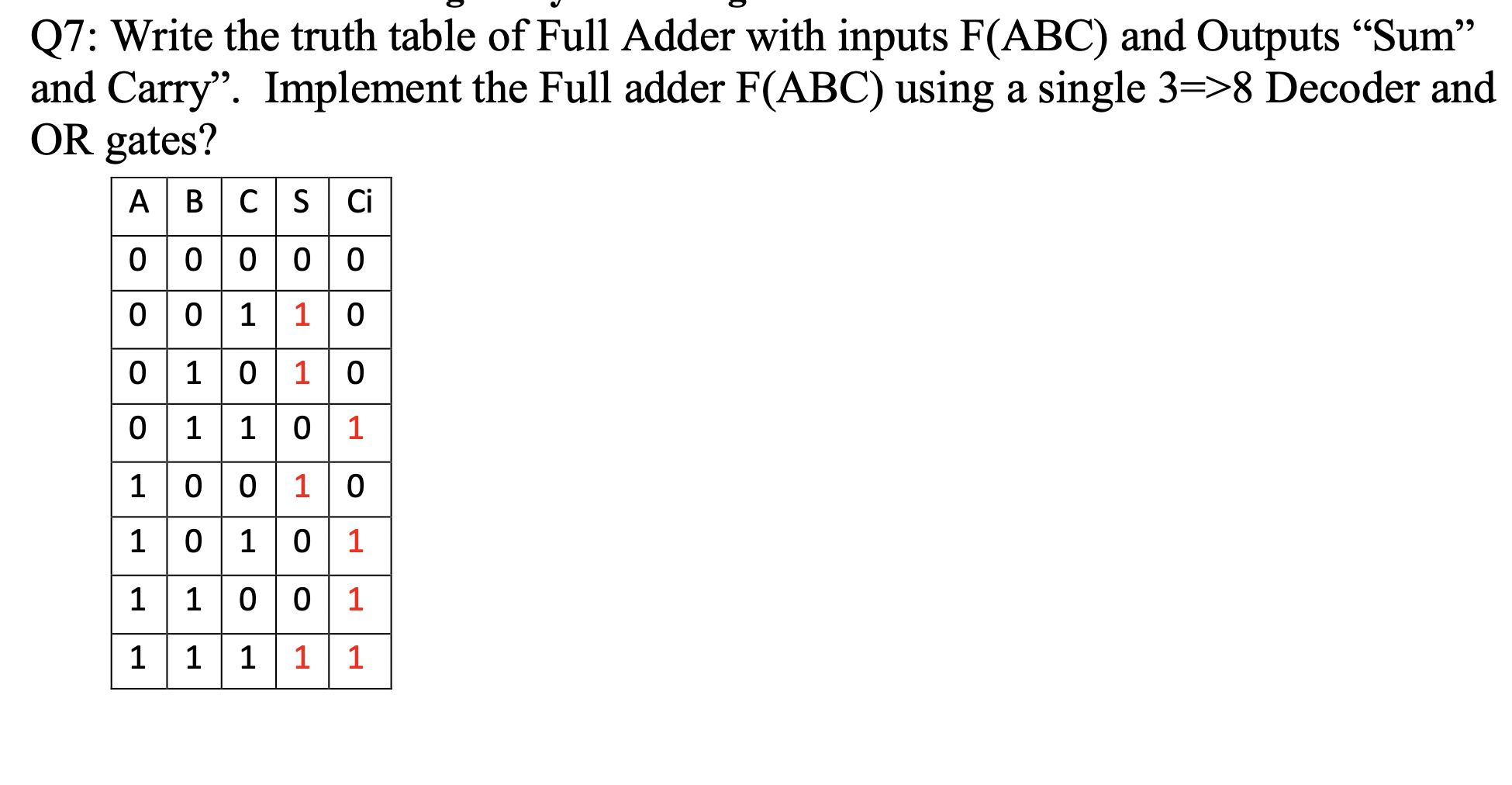

Q7: Write the truth table of Full Adder with inputs F(ABC) and Outputs "Sum"
and Carry". Implement the Full adder F(ABC) using a single 3=>8 Decoder and
OR gates?
Q7: Write the truth table of Full Adder with inputs F(ABC)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
