Question: Q1) Using a ROM, write a VHDL code that implements the following truth table [10 Marks Inputs Outputs A B Y Y Z 0 0

Q1) Using a ROM, write a VHDL code that implements the

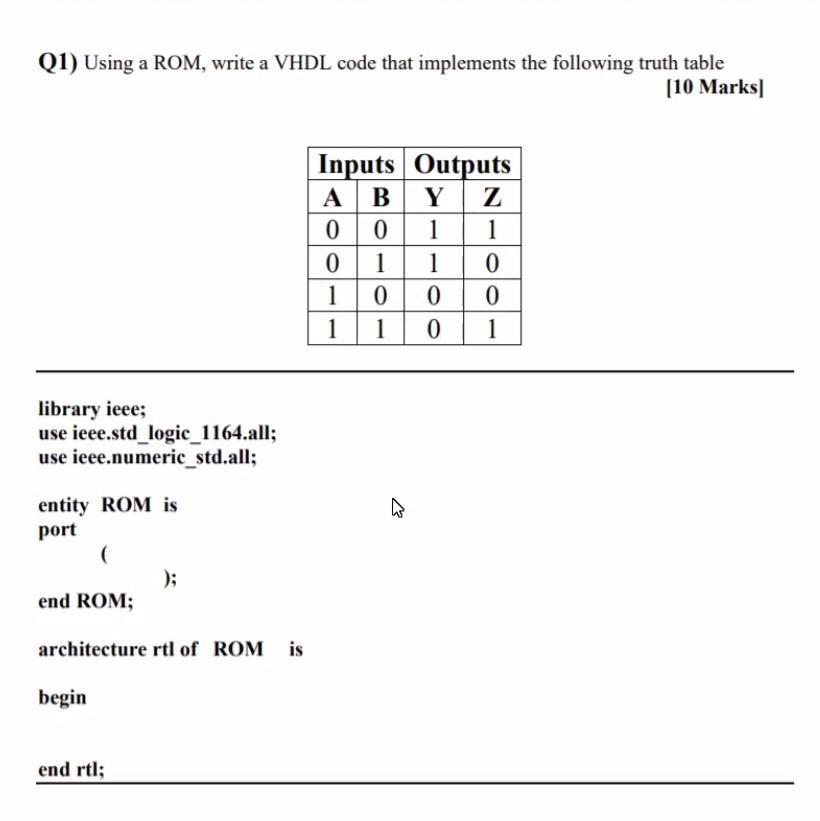

Q1) Using a ROM, write a VHDL code that implements the following truth table [10 Marks Inputs Outputs A B Y Y Z 0 0 1 1 011 0 1 0 0 0 1 1 0 1 library ieee; use ieee.std_logic_1164.all; use ieee.numeric_std.all; entity ROM is port ); end ROM; architecture rtl of ROM is begin end rtl

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
