Q6, Please answer A,b and c

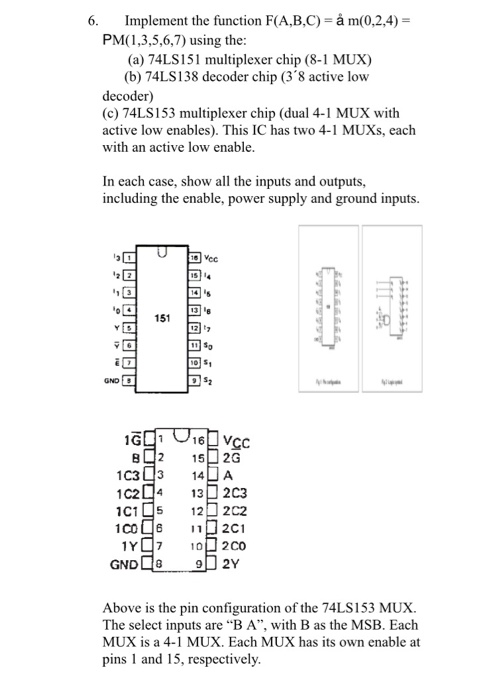

6. Implement the function F(A,B,C) m(0,2,4) PM(,3,5,6,7) using the: (a) 74LS151 multiplexer chip (8-1 MUX) (b) 74LS138 decoder chip (3'8 active low decoder) (c) 74LS153 multiplexer chip (dual 4-1 MUX with active low enables). This IC has two 4-1 MUXs, each with an active low enable In each case, show all the inputs and outputs, including the enable, power supply and ground inputs. 151 9 1C3 3 14A 1C24 2C3 1C1D5 1202C2 GND8 Above is the pin configuration of the 74LS153 MUX. The select inputs are "B A", with B as the MSB. Each MUX is a 4-1 MUX. Each MUX has its own enable at pins 1 and 15, respectively
