Question: Question 1 : In Figure 1 , the support C is fixed in horizontal and vertical directions while the support A is fixed in the

Question

1

: In Figure

1,

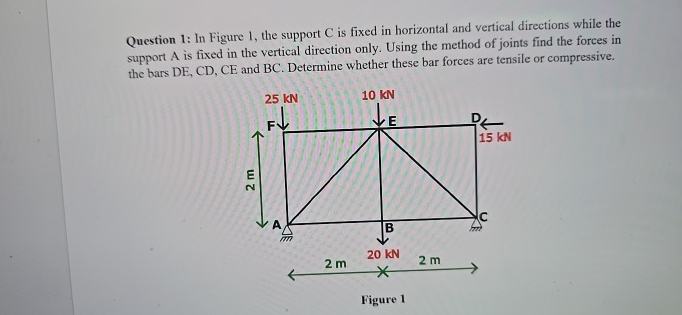

the support C is fixed in horizontal and vertical directions while the support A is fixed in the vertical direction only. Using the method of joints find the forces in the bars DE

,

,

CE and BC

.

Determine whether these bar forces are tensile or compressive.

Question 1 : In Figure 1 , the support C is fixed

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!
