Question: Question 2/ Soalan 2 UTM Given the activities whose sequence is described in Table Q2, draw the appropriate activity-on-arrow network diagram. Calculate slack for each

Question 2/ Soalan 2 UTM Given the activities

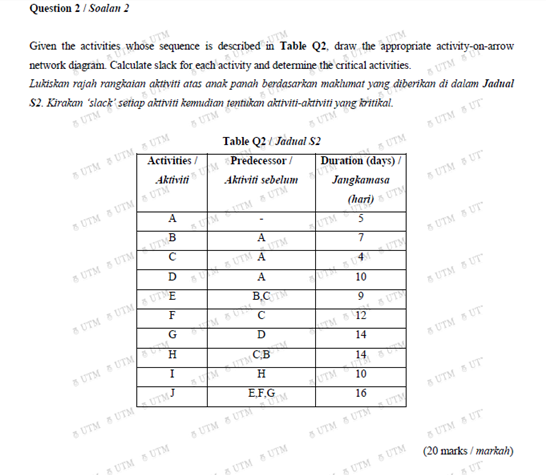

Question 2/ Soalan 2 UTM Given the activities whose sequence is described in Table Q2, draw the appropriate activity-on-arrow network diagram. Calculate slack for each activity and determine the critical activities. Lukiskan rajah rangkaian aktiviti atas anak panah berdasarkan maklumat yang diberikan di dalam Jadual $2. Kirakan 'slack' setiap aktiviti kemudian tentukan aktiviti-aktiviti yang kritikal. UTM UTM & UTM 8 UTM UTM 8 UTM & UTM 8 UTM 8 UTM Table Q2/Jadual S2 Predecessor / & UTM & UT Aktiviti sebelum Duration (days)/ & UTM Jangkamasa (hari) UTM 8 5 8 UTM 8 UTM UTM A C 8 UTM & UTM D 8 UTM & UTMUTDE F G 8 UTM & UTM Activities/ Aktivi 8 UTM 8 UTM AUM ITM UTM A A SUA UTM TM A B.CTM LM BOK D TMCB H E.F.GM H I UTM & UTM 8 UTM 8 UTM you UTM & UTM UTM 7 10 9 TM12 14 14 UTM 10 16 8 UTM 8 UTM UTM UTM & UTM & UTM & UT & UTM & UT & UTM & UT & UTM & UT & UTM & UT 8 UTM & UT (20 marks/ markah) BUT

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

Given the activities whose sequence is described in Table Q2 , draw the appropriate activity-on-arrow network diagram. Calculate slack for each activity and determine the critical activities Table Q2...

opjoh ber Given the activities whose sequence is described by the table, draw the appropriate activity-on-arrow (AOA) . 3.9 line at 3.6 Given the following table, draw the a network diagram. Which...

94 PART 1 INTRODUCTION TO OPERATIONS MA associated with the following activities for Carl Betterton's 3.5 Draw the activity-on-node (AON) project network construction project. How long should it take...

3.8 only thank you \begin{tabular}{l|ll} CHAPTER 3 & PROJECT MANAGEMENT 95 \end{tabular} - 3.6 Given the activities whose sequence is described by the " ".9 Task time estimates for the modification...

3.6 and 3.10 3.9 Task time estimates for the modification of an assembly 3.6 Given the activities whose sequence is described by the line at Jim Goodale's Carbondale, Illinois, factory are as...

3.5, 3.6, 3.10 A 6 94 PART 1 INTRODUCTION TO OPERATIONS MANAGEMENT 3.5 Draw the activity-on-mode (AON) project network. 3.8 Roger Ginde is developing a program in supply chain associated with the...

Given the activities whose sequence is described by the following table i) Draw the appropriate activity-on-arrow (AOA) network diagram neatly. Calculate ES, EF, LS, LF and slack for each activity....

You must show your work on your submission in order to receive credit! #3.6 Given the activities whose sequence is described by the following table, draw the appropriate activity- on-arrow (AOA)...

Problem 1: Suppose I add an Activity J, with Completion Time = 7 and Immediate Predecessor I. How long will the Project now take to complete? 25 days 30 days 32 days 18 days 94 3.5 Draw the...

Given the activities whose sequence is described by for the following table, draw the appropriate activity - on - arrow ( AOA ) network diagram. ACTIVITY IMMEDIATE PREDECESSOR ( S ) TIME ( DAYS ) A -...
