Question: Question 3 Consider a condensed truth table for a priority encoder: Inputs Outputs D D2 D D AL A. V 0 0 0 0 X

Question 3 Consider a condensed truth table for a priority encoder:

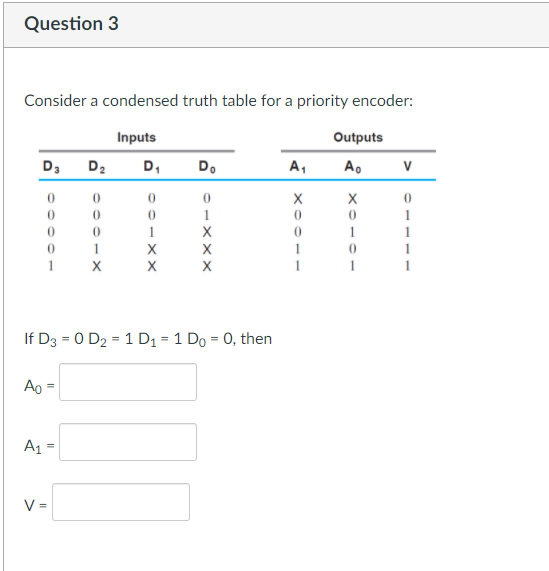

Question 3 Consider a condensed truth table for a priority encoder: Inputs Outputs D D2 D D AL A. V 0 0 0 0 X 0 X 0 0 1 0 0 1 X 0 1 X X 1 1 1 If D3 = 0 D2 - 1 D1 = 1 Do = 0, then A1- V=

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
