Question: Question 4 2 0 marks Given: The frame shown below has pinned connections at A , B , & C . The frame is loaded

Question 4
20 marks

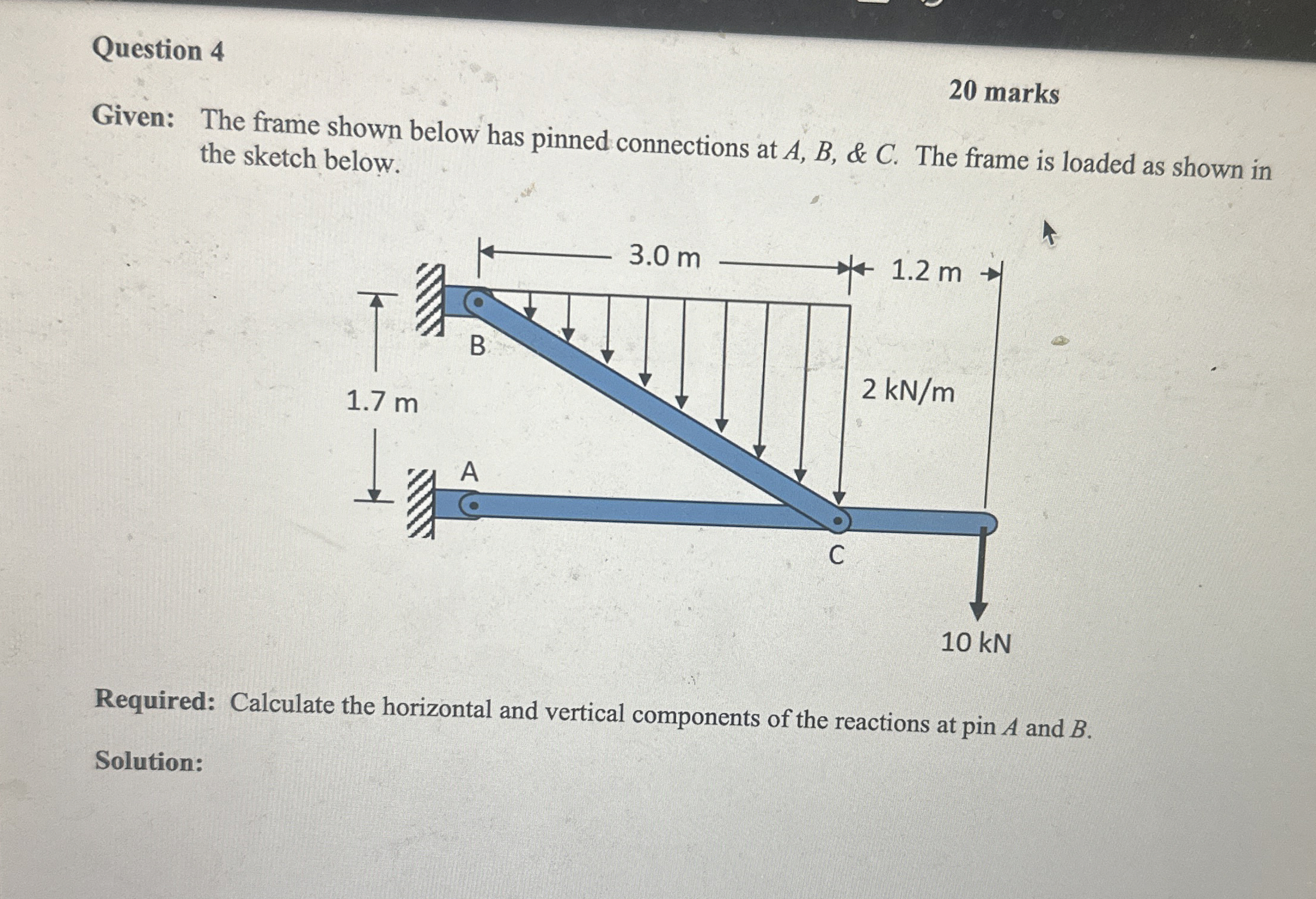

Given: The frame shown below has pinned connections at A,B,&C. The frame is loaded as shown in the sketch below.
Required: Calculate the horizontal and vertical components of the reactions at nA and B.
Solution:
Question 4 2 0 marks Given: The frame shown below

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
