Question: question 4)a a. An electrical sensor has the four inputs A,B,X and Y where the value of these inputs can be either 0 or 5V.

question 4)a question 4)a a. An electrical sensor has the four inputs A,B,X and

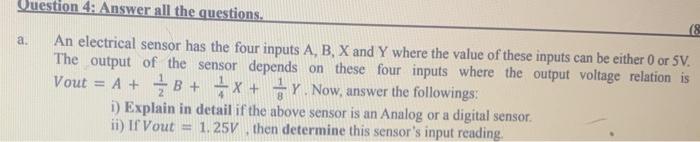

a. An electrical sensor has the four inputs A,B,X and Y where the value of these inputs can be either 0 or 5V. The output of the sensor depends on these four inputs where the output voltage relation is Vout =A+21B+41X+81Y. Now, answer the followings: i) Explain in detail if the above sensor is an Analog or a digital sensor. ii) If Vout =1.25V, then determine this sensor's input reading

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
