Question: Question 5 : The beam A B will fail if the maximum internal moment at D reaches 8 0 0 N * m or the

Question 5: The beam AB will fail if the maximum internal moment at D reaches 800N*m or the
normal force in member BC becomes 1500 N. Determine the largest load w it can support.

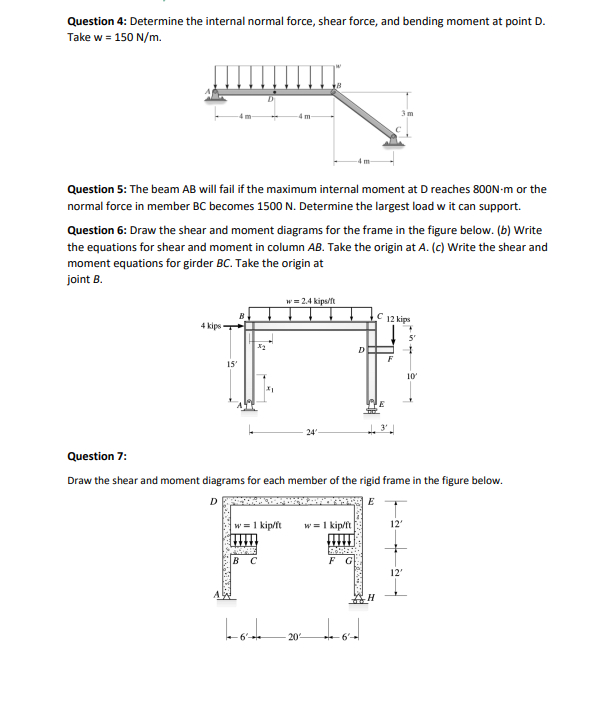

Question 6: Draw the shear and moment diagrams for the frame in the figure below. (b) Write
the equations for shear and moment in column AB. Take the origin at A.(c) Write the shear and
moment equations for girder BC. Take the origin at
joint B.
Question 7:
Draw the shear and moment diagrams for each member of the rigid frame in the figure below.
Question 5 : The beam A B will fail if the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

The beam \(A B\) will fail if the maximum internal moment at \(D\) reaches \(4.50 \mathrm{kN} \cdot \mathrm{m}\) or the normal force in member \(B C\) becomes \(6 \mathrm{kN}\). Determine the largest...

Q:

* 4 - 4 . Determine the internal normal force, shear force, and bending moment at point D . Take w = 1 5 0 N m . 4 - 5 . The beam A B will fail if the maximum internal moment at D reaches 8 0 0 N * m...

Q:

Q# 2 ( 3 0 pts ) : The loading condition and geometry of the beam is given in Figure 2 has simple support at point A and C , pinned point at point B . The beam AB shall fail if the maximum internal...

Q:

4 - 5 ( w = 1 5 0 N / m ) draw the sheer and moment diagram for the beam . The beam A B will fail if the maximum internal moment at D reaches 8 0 0 N * m or the normal force in member B C becomes 1 5...

Q:

The beam A B will fail if the maximum internal moment at D reaches 5 . 1 k N * m or the normal force in member B C becomes 5 . 4 k N . ( Figure 1 ) Figure Part A Determine the largest concentrated...

Q:

The beam AB will fail if the maximum internal moment at D reaches 2 . 7 kN . m or the normal force in the member BC becomes 3 . 0 kN . Determine the largest concentrated force P it can support.

Q:

The beam A B will fail if the maximum internal moment at D reaches 4 . 5 0 k N . m or the normal force in member BC becomes 6 k N . Determine the largest concentrated force P it can support

Q:

The beam AB will fail if the maximum internal moment at D reaches 4 . 5 0 kN . m or the normal force in member BC becomes 6 kN . Determine the largest concentrated force P it can support

Q:

4 - 5 . The beam A B will fail if the maximum internal moment at D reaches 4 . 5 0 k N * m or the normal force in member B C becomes 6 kN . Determine the largest concentrated force P it can support....

Q:

The beam AB will fail if the maximum internal moment at D reaches Mmax or the normal force in member BC becomes Pmax. Determine the largest load w it can support. Given: Mmax = 800 N m Pmax = 1500 N...
