Question: question must be solved on matlab A roll control system is shown in Figure . Sketch the root locus diagram for this system. a Determine

question must be solved on matlab

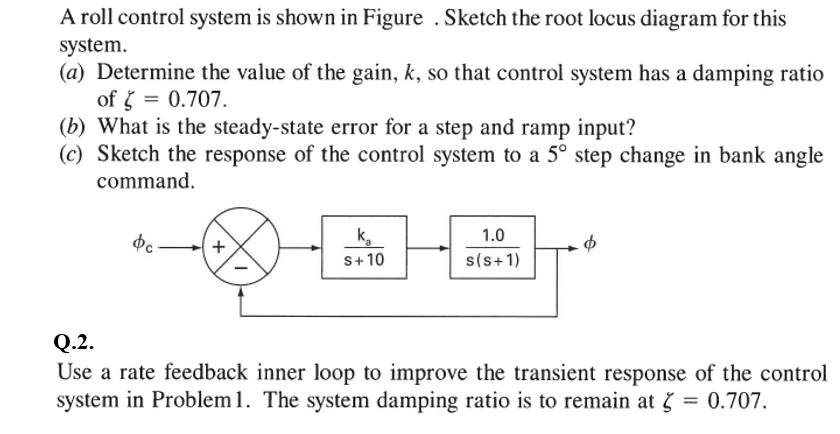

A roll control system is shown in Figure . Sketch the root locus diagram for this system. a Determine the value of the gain, k, so that control system has a damping ratio of 50.707 (b) What is the steady-state error for a step and ramp input? (c) Sketch the response of the control system to a 5 step change in bank angle command 1.0 S+10 Q.2. Use a rate feedback inner loop to improve the transient response of the control system in Problem1. The system damping ratio is to remain at 0.707. A roll control system is shown in Figure . Sketch the root locus diagram for this system. a Determine the value of the gain, k, so that control system has a damping ratio of 50.707 (b) What is the steady-state error for a step and ramp input? (c) Sketch the response of the control system to a 5 step change in bank angle command 1.0 S+10 Q.2. Use a rate feedback inner loop to improve the transient response of the control system in Problem1. The system damping ratio is to remain at 0.707
