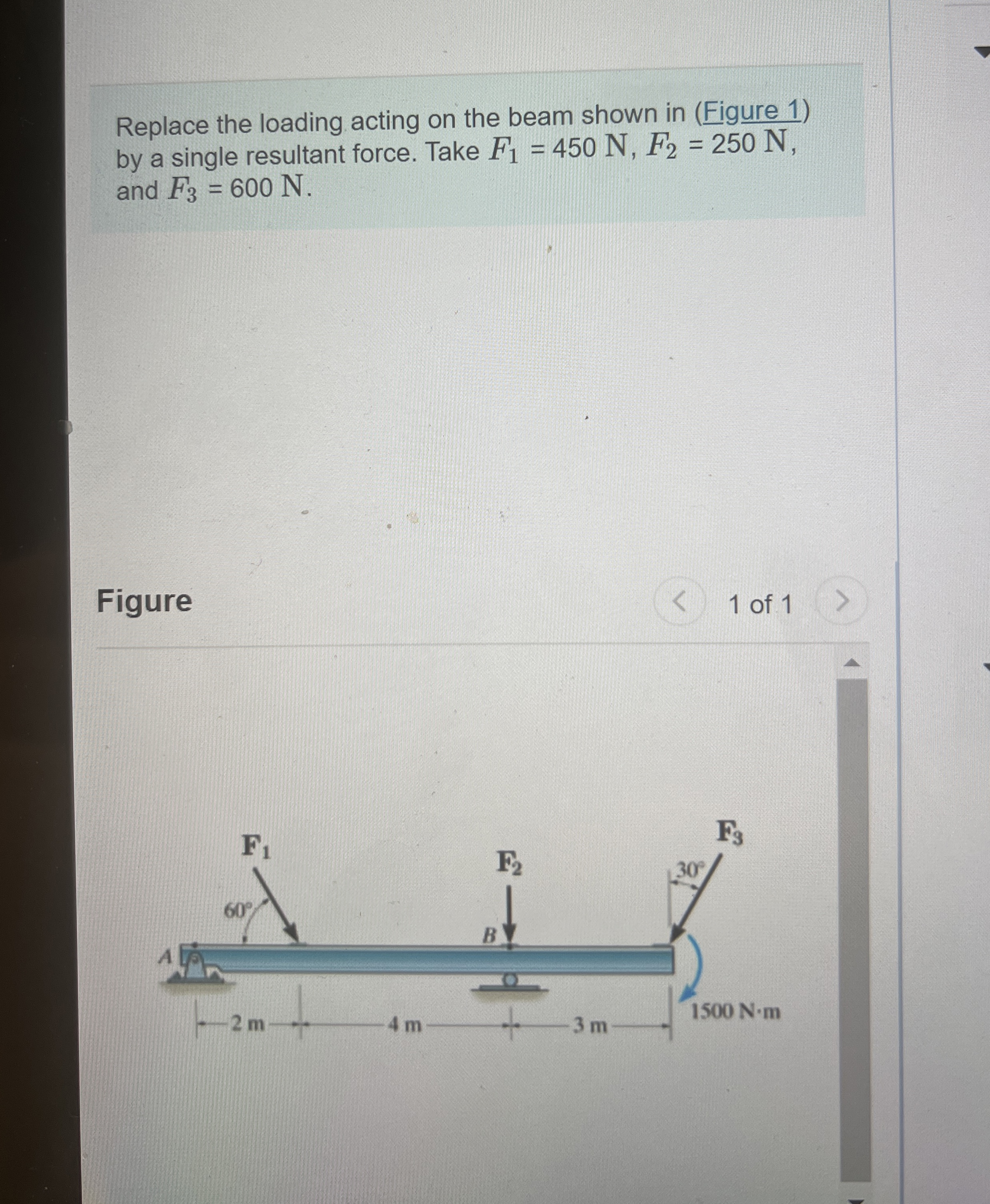

Question: Replace the loading acting on the beam shown in ( Figure 1 ) by a single resultant force. Take F 1 = 4 5 0

Replace the loading acting on the beam shown in (Figure 1)
by a single resultant force. Take F1=450N,F2=250N,
and F3=600N.
Figure
Replace the loading acting on the beam shown in (

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
