Question: ! Required information Problem 0 5 . 0 0 7 - Determine the shear and bending moment diagrams of the given beam with three concentrated

!
Required information

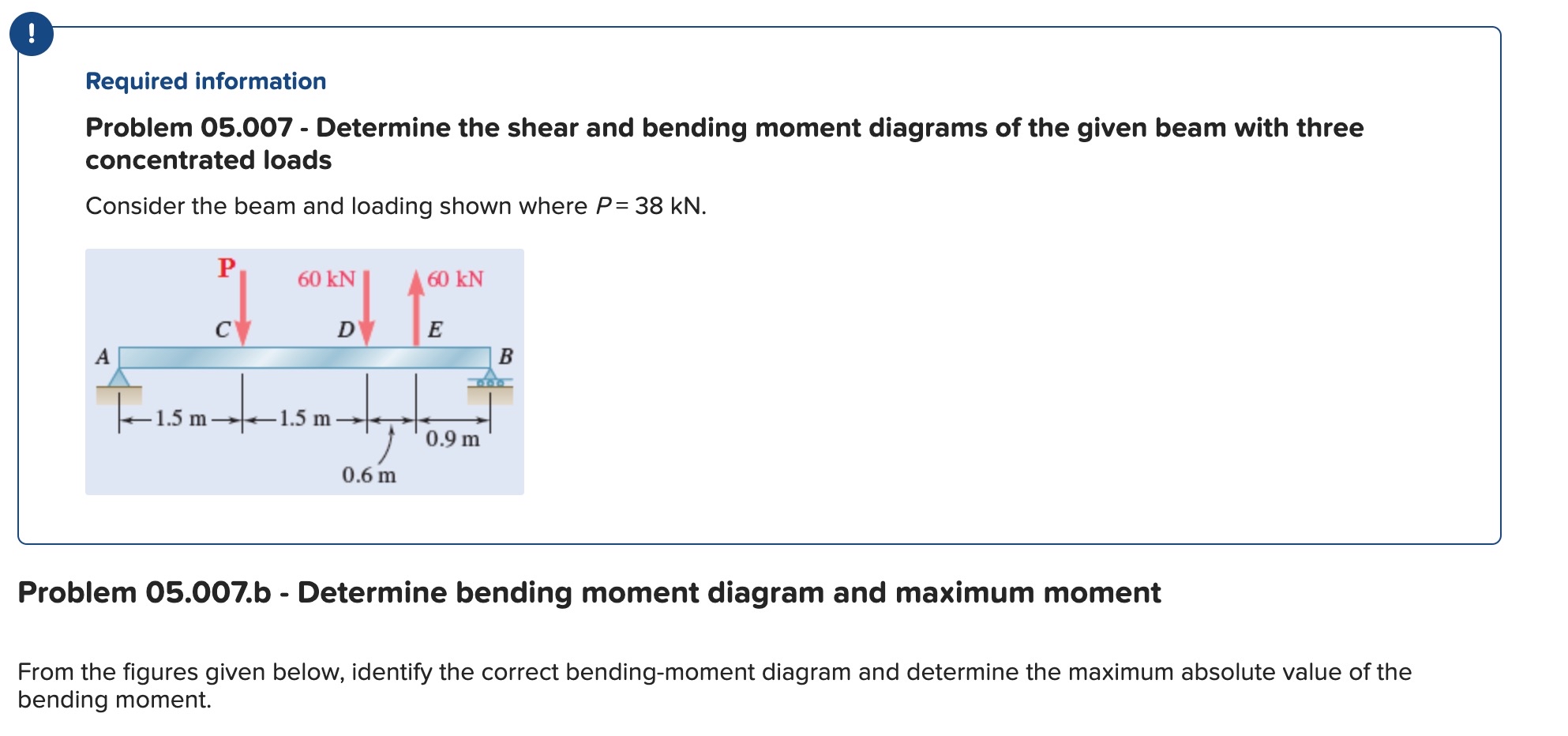

Problem 05.007- Determine the shear and bending moment diagrams of the given beam with three concentrated loads
Consider the beam and loading shown where P=38kN.
Problem 05.007.b - Determine bending moment diagram and maximum moment
From the figures given below, identify the correct bending-moment diagram and determine the maximum absolute value of the bending moment.
! Required information Problem 0 5 . 0 0 7 -
