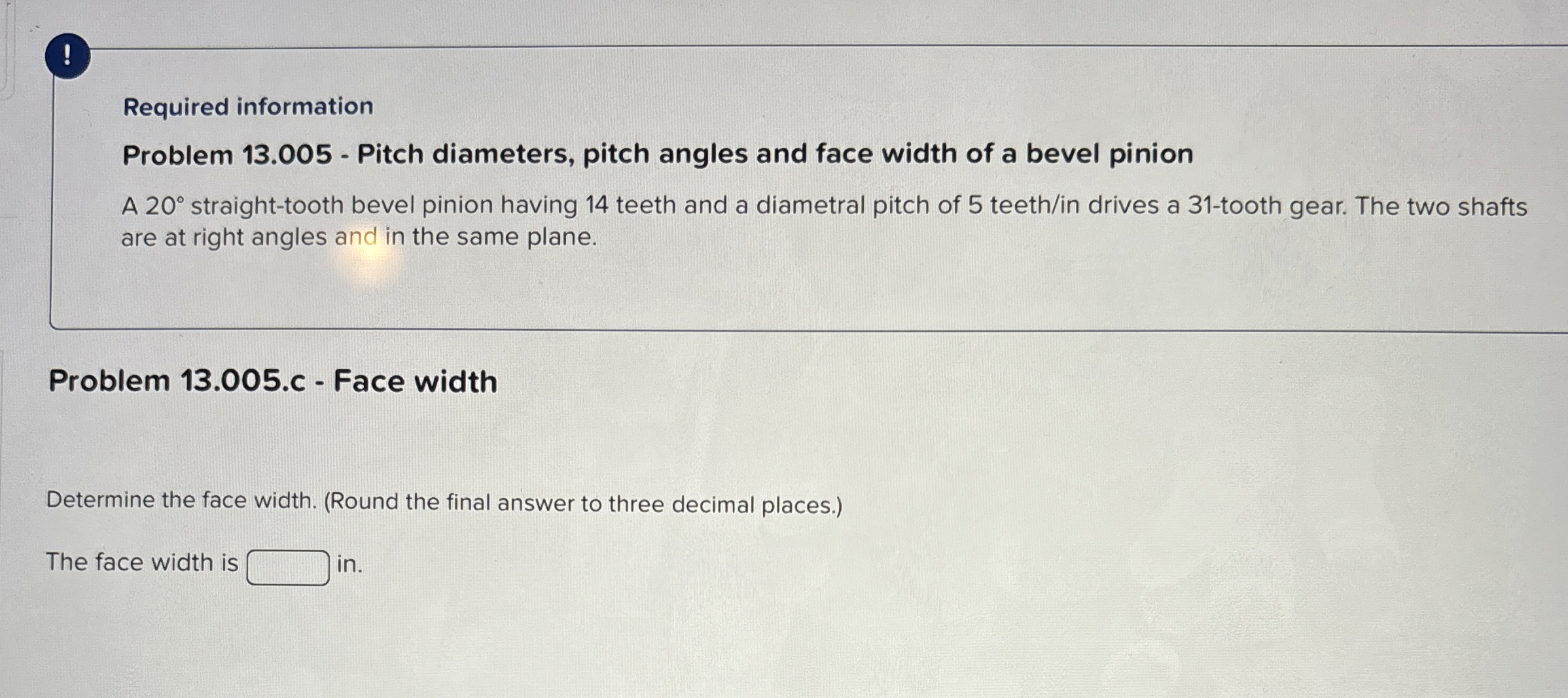

Required information
Problem 13.005- Pitch diameters, pitch angles and face width of a bevel pinion
A 20 straight-tooth bevel pinion having 14 teeth and a diametral pitch of 5 teeth/in drives a 31-tooth gear. The two shafts are at right angles and in the same plane.
Problem 13.005.c - Face width
Determine the face width. (Round the final answer to three decimal places.)
The face width is in.
