School of Electronics and Mechanical Engineering Technology Part 2: Circuit construction 1. Build the circuit in...
Fantastic news! We've Found the answer you've been seeking!
Question:
Transcribed Image Text:

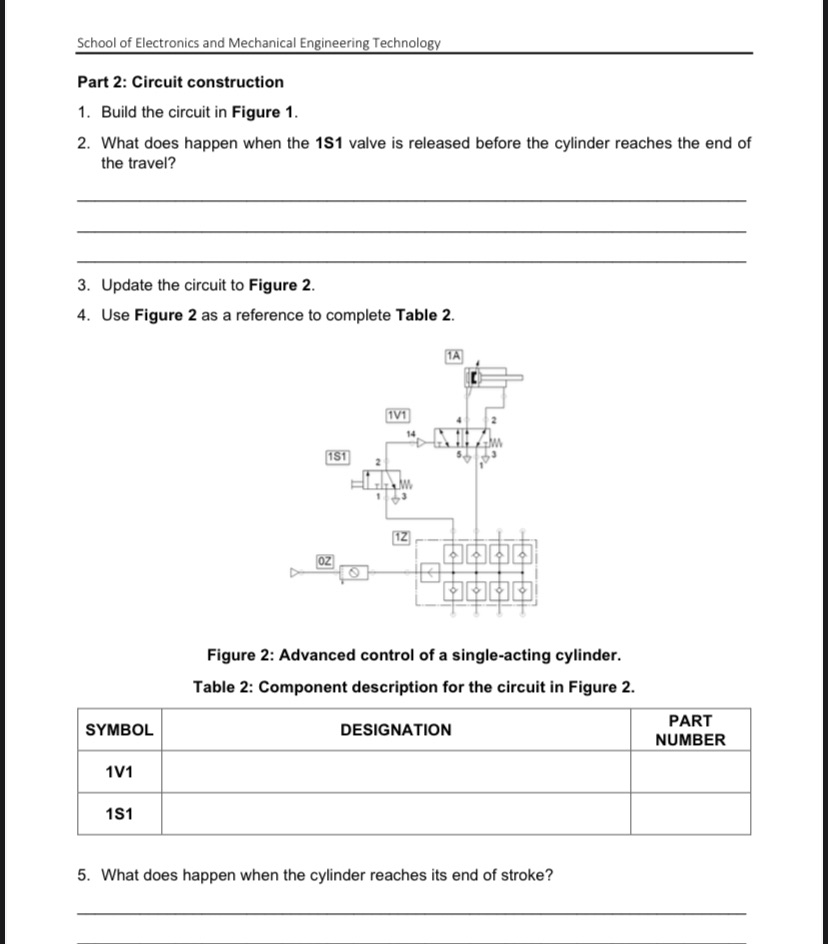

School of Electronics and Mechanical Engineering Technology Part 2: Circuit construction 1. Build the circuit in Figure 1. 2. What does happen when the 1S1 valve is released before the cylinder reaches the end of the travel? 3. Update the circuit to Figure 2. 4. Use Figure 2 as a reference to complete Table 2. OZ 1S1 1V1 SYMBOL 1V1 1S1 Figure 2: Advanced control of a single-acting cylinder. Table 2: Component description for the circuit in Figure 2. DESIGNATION 5. What does happen when the cylinder reaches its end of stroke? PART NUMBER School of Electronics and Mechanical Engineering Technology Part 2: Circuit construction 1. Build the circuit in Figure 1. 2. What does happen when the 1S1 valve is released before the cylinder reaches the end of the travel? 3. Update the circuit to Figure 2. 4. Use Figure 2 as a reference to complete Table 2. OZ 1S1 1V1 SYMBOL 1V1 1S1 Figure 2: Advanced control of a single-acting cylinder. Table 2: Component description for the circuit in Figure 2. DESIGNATION 5. What does happen when the cylinder reaches its end of stroke? PART NUMBER
