Question: SOLVE BY HAND WITHOUT ARTIFICIAL INTELLIGENCE SOLVE STEP BY STEP A conical gear wheel is mounted on the circular cross - section shaft. Determine the

SOLVE BY HAND WITHOUT ARTIFICIAL INTELLIGENCE
SOLVE STEP BY STEP

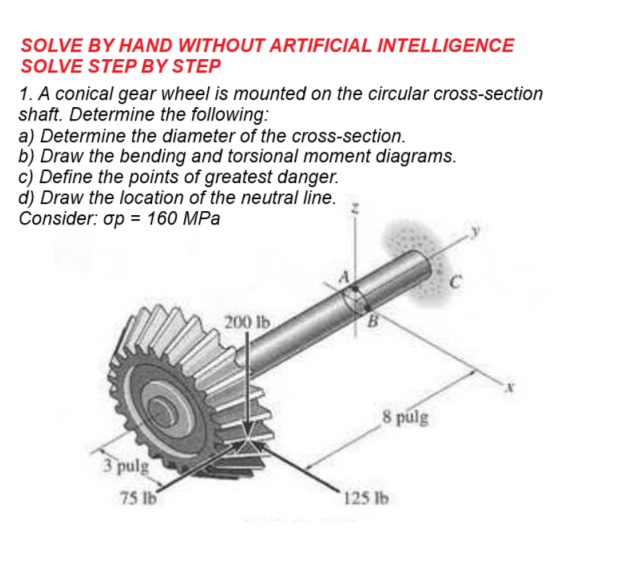

A conical gear wheel is mounted on the circular cross-section
shaft. Determine the following:
a) Determine the diameter of the cross-section.
b) Draw the bending and torsional moment diagrams.
c) Define the points of greatest danger.
d) Draw the location of the neutral line.
Consider: p=160MPa
SOLVE BY HAND WITHOUT ARTIFICIAL INTELLIGENCE

Step by Step Solution

There are 3 Steps involved in it
