Question: solve it clear and show work Name: Use the equal friction method to design the supply air duct system in the following single line diagram.

solve it clear and show work

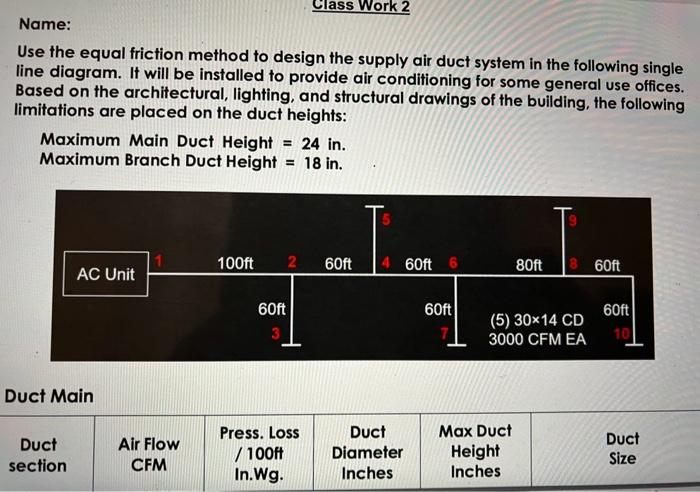

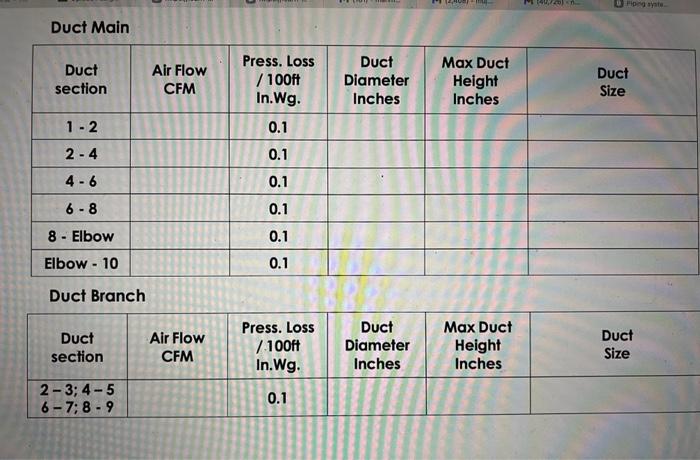

Name: Use the equal friction method to design the supply air duct system in the following single line diagram. It will be installed to provide air conditioning for some general use offices. Based on the architectural, lighting, and structural drawings of the building, the following limitations are placed on the duct heights: Maximum Main Duct Height =24 in. Maximum Branch Duct Height =18in. Duct Main Duct Main Duct Branch
