Question: statics 4. For the truss system shown, determine the maximum possible force that can be applied at point C if any of the members can

statics 4. For the truss system shown, determine the maximum possible

statics

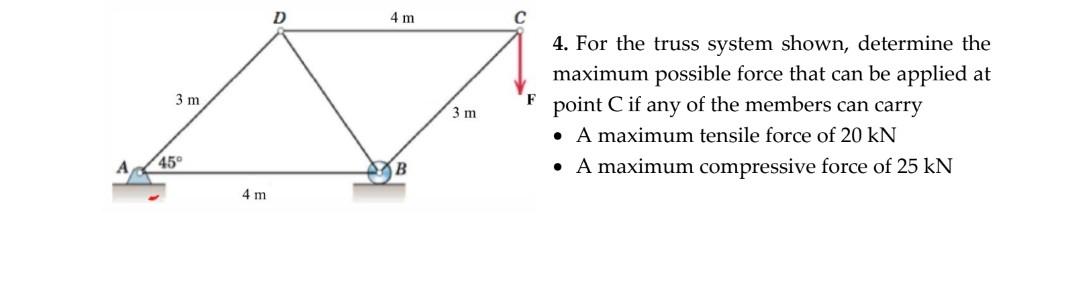

4. For the truss system shown, determine the maximum possible force that can be applied at point C if any of the members can carry - A maximum tensile force of 20kN - A maximum compressive force of 25kN

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
