Question: Statics Problem 2 : and HI . Problem 3 : Using method of Joints, find the force of member I / 1 , members. (

Statics Problem 2:
and HI.
Problem 3:

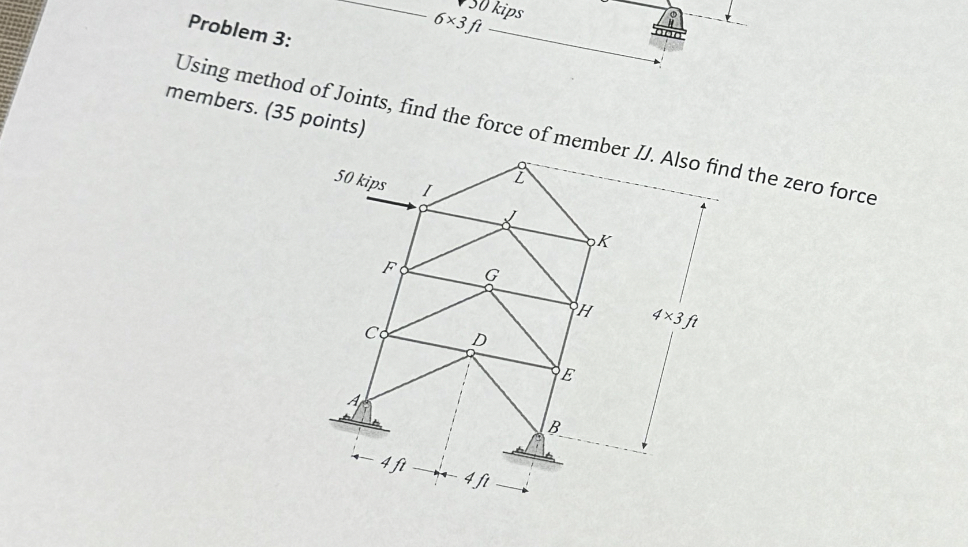

Using method of Joints, find the force of member I/1, members. (35 points)
d the zero force
Statics Problem 2 : and HI . Problem 3 : Using

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Problem 3 : Using method of Joints, find the force of member IJ .

Q:

Problem 2 : Method of Joints Problem 2 : Method of Joints Consider the truss below, assuming that all member joints are pined: a . Identify all zero force members by inspection. b . Using the Method...

Q:

Question 4 When a team member in SDP at the SREE department is putting a lot of effort to achieve assigned tasks, can we consider this case as? 1. A social loafing problem. 2. A technical problem. 3-...

Q:

Test 2 Problem 3 Trusses, Method of Joints: The test problem was The ideal truss is shown, Supports A and \ ( K \ ) are both anchored frictionless pins. Vertical downword forces are opplied of pins \...

Q:

P2. Usage of Working Model 2D Software to solve a Truss Problem Download the demo files "HoweTruss.wm2d and ChairForces.wm2d" as provided within the Working Model 2D software. These files are located...

Q:

Statics. Please answer questions. roblem 3: In the truss shown, Identify all zero force members by drawing a cross (X) at the center of each zero force member you identify. I Find the forces in...

Q:

Problem 2 ( Truss Analysis ) ( Due: 1 1 am on Sep 1 3 , 2 0 2 4 ) A planar truss made of wood, is subjected to typical wind loading as shown in Fig. P 2 ( a ) . Assume that each member is a solid...

Q:

(2) Truss Analysis by Hand using Method of Sections (20 pts) Consider the truss structure shown in Figure 2. The magnitude of F is 25 kN. Your solution for this problem should include assumptions,...

Q:

Problem 2 : Method of Joints Consider the truss below, assuming that all member joints are pined: a . Identify all zero force members by inspection. b . Using the Method of Joints and your answer...

Q:

Given the truss below, find the following: a ) Support reactions at A and D . b ) All the zero - force members by inspection ( one wrong answer will eliminate one correct answer ) . c ) Magnitude of...
