Question: Step by step please Determine the LRFD design c Pn for the column shown, using the AISC Specification and F y = 5 0 ksi.

Step by step please
Determine the LRFD design c Pn for the column shown, using the AISC Specification and Fy=50ksi.

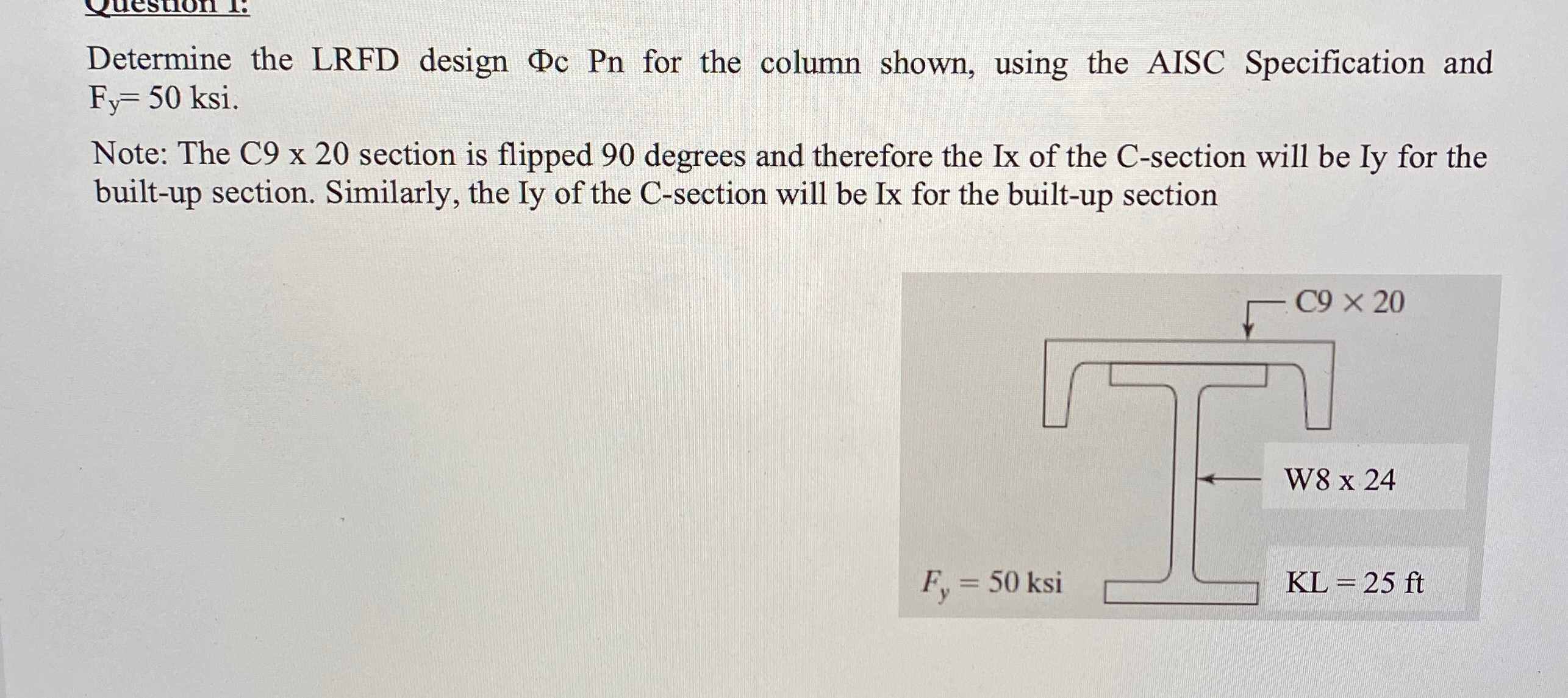

Note: The C9 x 20 section is flipped 90 degrees and therefore the Ix of the C-section will be Iy for the built-up section. Similarly, the Iy of the C-section will be Ix for the built-up section
Step by step please Determine the LRFD design c

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
