Task 2 - Layer 2 Implementation and Analysis Copy, save and modify your previously constructed network for Task 2.

Create 2 subnets in Network A and allocate VLAN 150 for each PC (A, B and C) in the upper left (blue) quadrant configuring appropriate switch port settings.

In the lower left (pink) quadrant of Network A, allocate VLAN 300 to PC-D & PC-E and allocate VLAN 150 to PC-F configuring appropriate switch port settings.

Reconfigure the Router-A interface and DHCP pools to accommodate the subnet changes required for the VLAN configuration. This may either be done with an additional link between Switch-C and Router-A or by creating a Router on a Stick configuration with sub-interfaces on Router-A.

Report - Document the IP ranges and masks for each subnet and describe your solution for VLAN configuration and routing between subnets and how it differs to task 1.

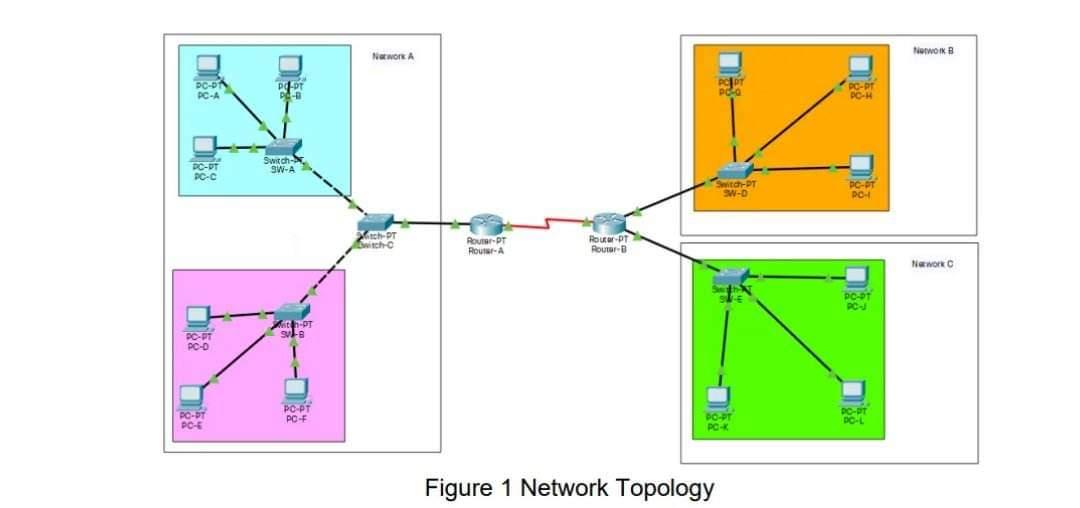

Figure 1 Network Topology
