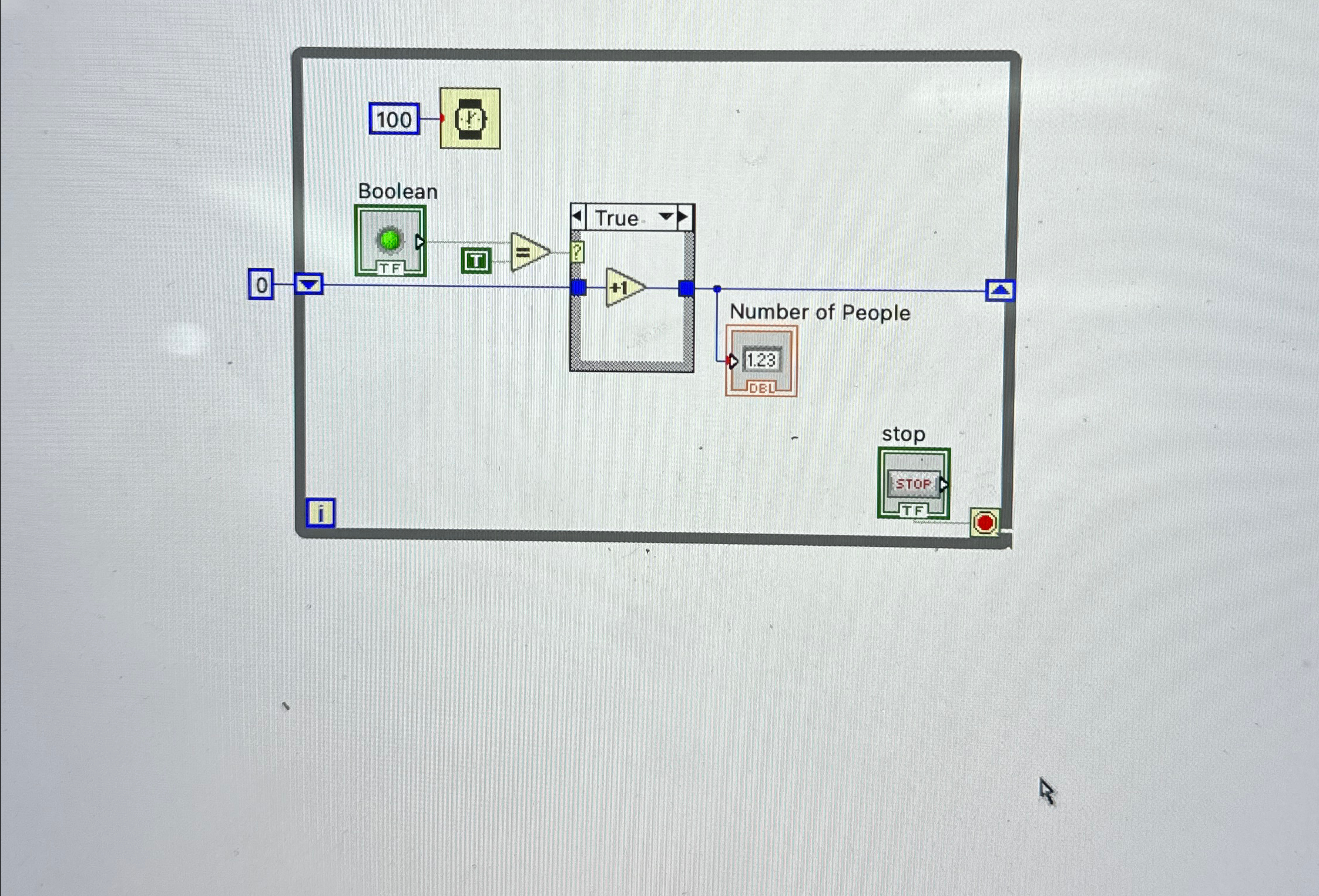

The above is a example for lab view assignment that i had earlier this is the block diagram of labview

I need to get the block diagram for the below assignment having block diagram and front pannel This assignment requires using the IR Sensors and Servo Motor to design an automated parking lot.

Once a vehicle arrives at the sensor$,$ the servomotor opens up the gate and stays open as long as the car hasn't left. Once the car moves away, it waits for $3$ seconds and then shuts the gate and gets ready for the next car coming.

Requirements for submission:

Each group will be assigned one NI$-$DAQ, and each member must develop their logic. You must submit a short live video, a written report, and a VI file for this assignment individually.

$7$:$59$ pmt panel image for the following question
