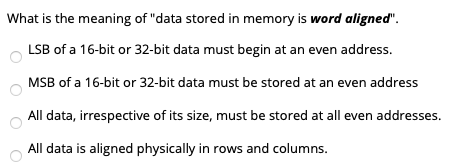

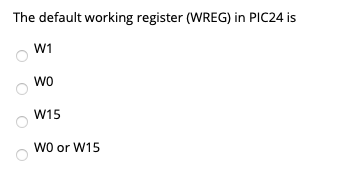

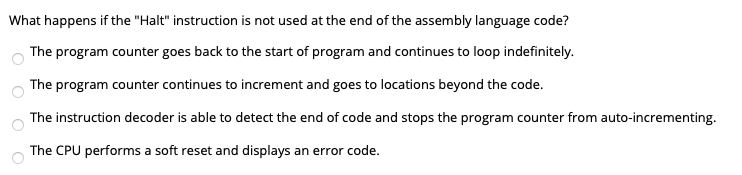

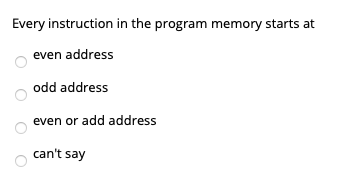

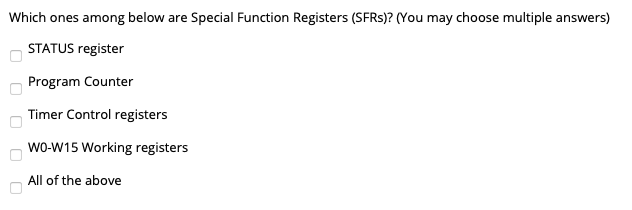

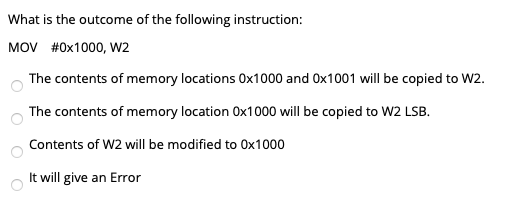

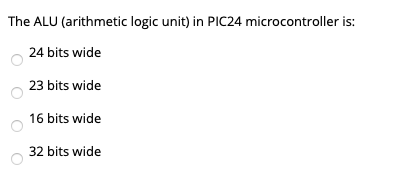

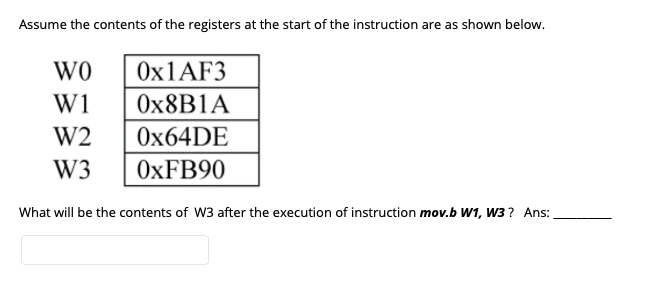

The ALU (arithmetic logic unit) in PIC24 microcontroller is: 24 bits wide 23 bits wide 16 bits wide 32 bits wide What is the outcome of the following instruction: MOV #0x1000, W2 The contents of memory locations 0x1000 and Ox1001 will be copied to W2. The contents of memory location 0x1000 will be copied to W2 LSB. Contents of W2 will be modified to 0x1000 It will give an Error Every instruction in the program memory starts at even address odd address even or add address can't say The default working register (WREG) in PIC24 is W1 WO W15 wo or W15 Which ones among below are Special Function Registers (SFRs)? (You may choose multiple answers) STATUS register Program Counter Timer Control registers WO-W15 Working registers All of the above What is the meaning of "data stored in memory is word aligned". LSB of a 16-bit or 32-bit data must begin at an even address. MSB of a 16-bit or 32-bit data must be stored at an even address All data, irrespective of its size, must be stored at all even addresses. All data is aligned physically in rows and columns. The What happens if the "Halt" instruction is not used at the end of the assembly language code? program counter goes back to the start of program and continues to loop indefinitely. The program counter continues to increment and goes to locations beyond the code. The instruction decoder is able to detect the end of code and stops the program counter from auto-incrementing. The CPU performs a soft reset and displays an error code. The width of the address bus determines the response time of the system. True False Assume the contents of the registers at the start of the instruction are as shown below. WO W1 W2 W3 Ox1AF3 0x8B1A 0x64DE OxFB90 What will be the contents of W3 after the execution of instruction mov.b W1, W3? Ans: The program memory in PIC microcontroller is volatile memory whereas the data memory is non-volatile memory. Save Answer for Question 10 True False
