Question: The closed loop transfer function of a metal sheet thickness control system is given as G ( s ) = 2 s + 3 s

The closed loop transfer function of a metal sheet thickness control system is given as
G(s)=2s+3s5+s4+3s3+3s2+s+1
I. Using the Routh-Hurwitz criterion determine the stability of the control system whose transfer function
II. How many poles lie on the Right-Hand-Side of the s-plane?
III. How many poles lie on the Left-Hand-Side of the s-plane?
marks)

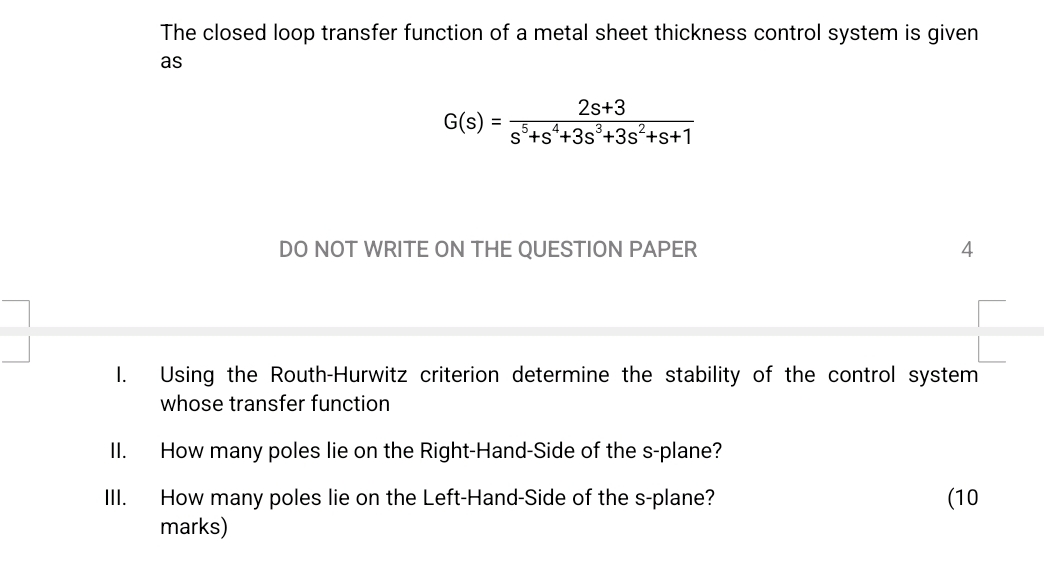

The closed loop transfer function of a metal

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
