Question: The following circuit represents: Select one: a . Four - bit adder - subtractor without overflow detection b . Four - bit adder - subtractor

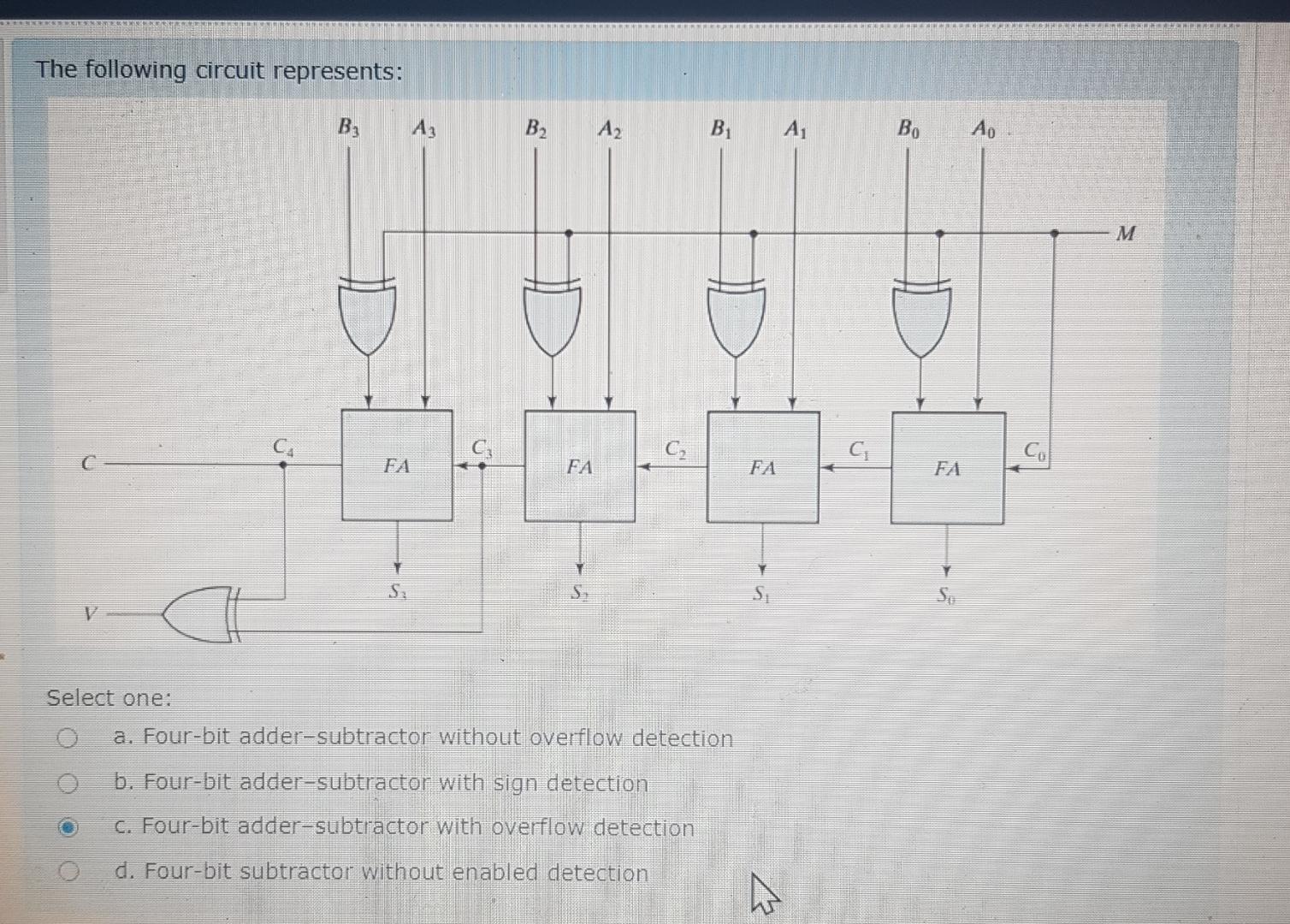

The following circuit represents:
Select one:
a. Four-bit adder-subtractor without overflow detection
b. Four-bit adder-subtractor with sign detection
c. Four-bit adder-subtractor with overflow detection
d. Four-bit subtractor without enabled detection
The following circuit represents: Select one: a. Four-bit adder-subtractor without overflow

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
