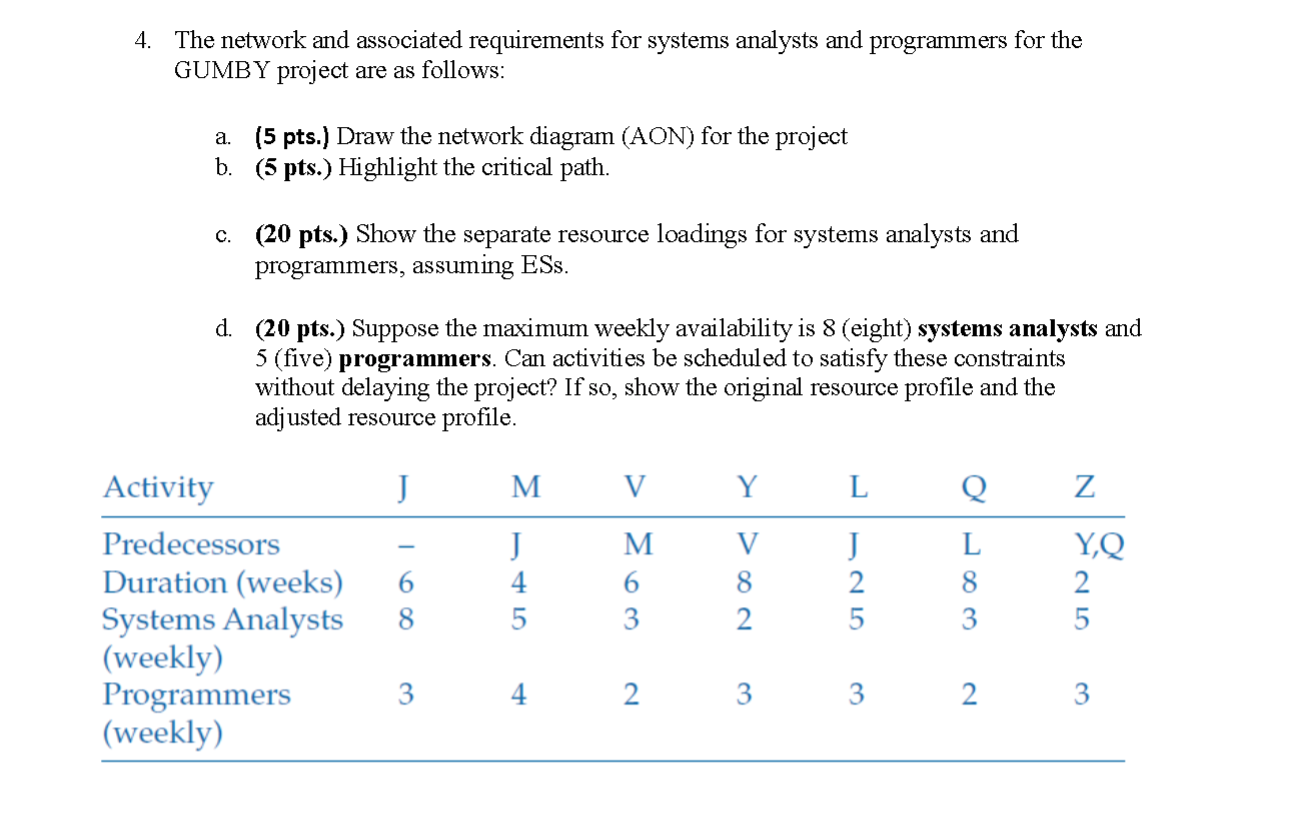

The network and associated requirements for systems analysts and programmers for the GUMBY project are as follows:

a$.(5$ pts$.)$ Draw the network diagram $($AON$)$ for the project

b$.(5$ pts$.)$ Highlight the critical path.

c$.(20$ pts$.)$ Show the separate resource loadings for systems analysts and programmers, assuming ESs.

d$.(20$ pts$.)$ Suppose the maximum weekly availability is $8($eight$)$ systems analysts and $5($five$)$ programmers. Can activities be scheduled to satisfy these constraints without delaying the project? If so$,$ show the original resource profile and the adjusted resource profile.

$\backslash$table$[[$Activity$,$J$,$M$,$V$,$Y$,$L$,$Q$,$Z$],[$Predecessors$,-,$J$,$M$,$V$,$J$,$L$,$Y$,$Q$],[$Duration $($weeks$),6,4,6,8,2,8,2],[\backslash$table$[[$Systems Analysts$],[($weekly$)]],8,5,3,2,5,3,5],[\backslash$table$[[$Programmers$],[($weekly$)]],3,4,2,3,3,2,3]]$
