Question: The shaft, with circular section, has been fixed from left and made of steel with Sy = 4 7 0 MPa, Sut = 5 5

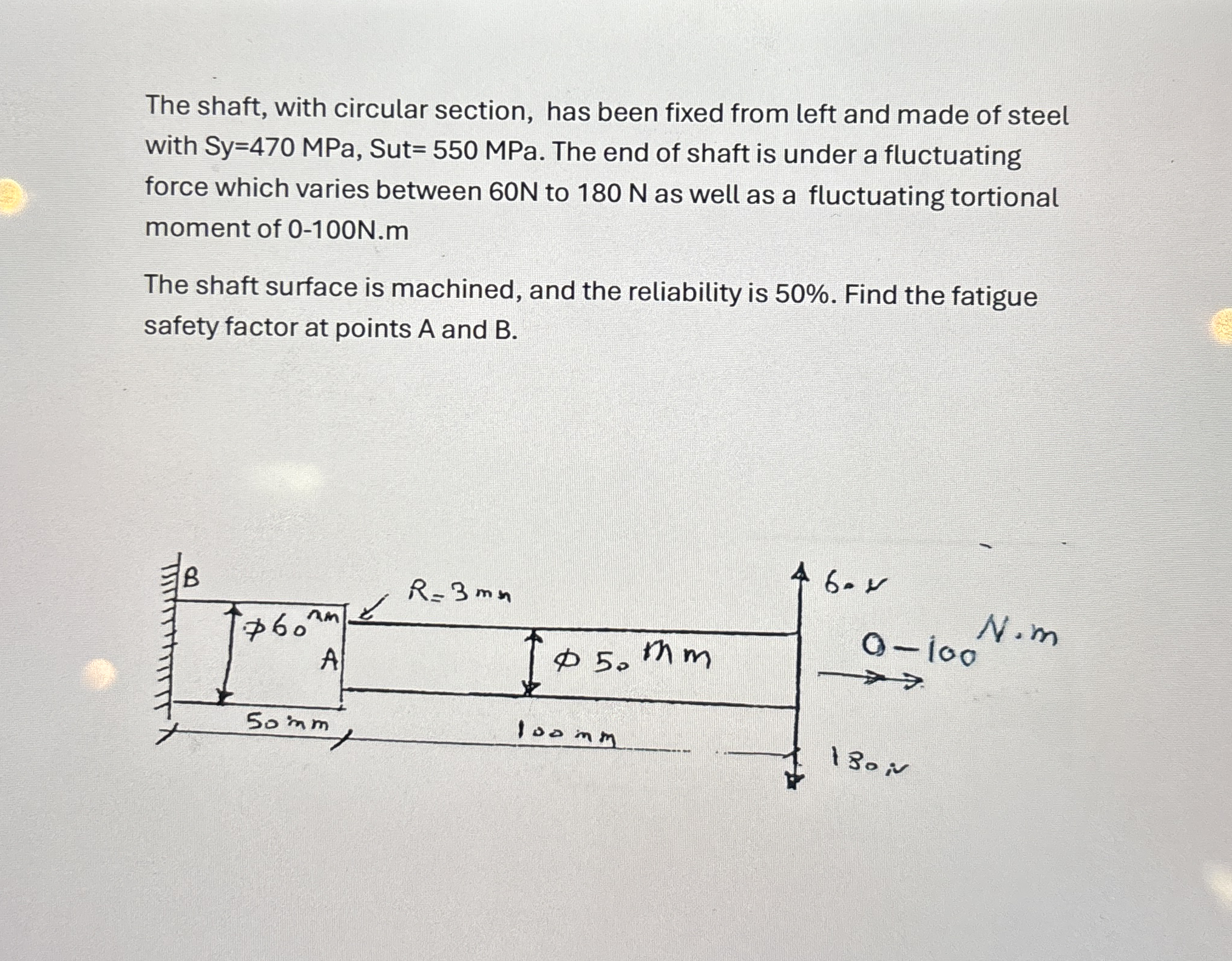

The shaft, with circular section, has been fixed from left and made of steel with Sy=470 MPa, Sut=550 MPa. The end of shaft is under a fluctuating force which varies between 60 N to 180 N as well as a fluctuating tortional moment of 0-100N.m
The shaft surface is machined, and the reliability is 50%. Find the fatigue safety factor at points A and B.
The shaft, with circular section, has been fixed

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

The shaft, with circular section, has been fixed from left and made of steel with S y = 4 7 0 MPa, Sut = 5 5 0 MPa. The end of shaft is under a fluctuating force which varies between 6 0 N to 1 8 0 N...
