Question: The Truss shown below will be designed; the lightest double - angle 2 L steel for each member will be selected. The connections at the

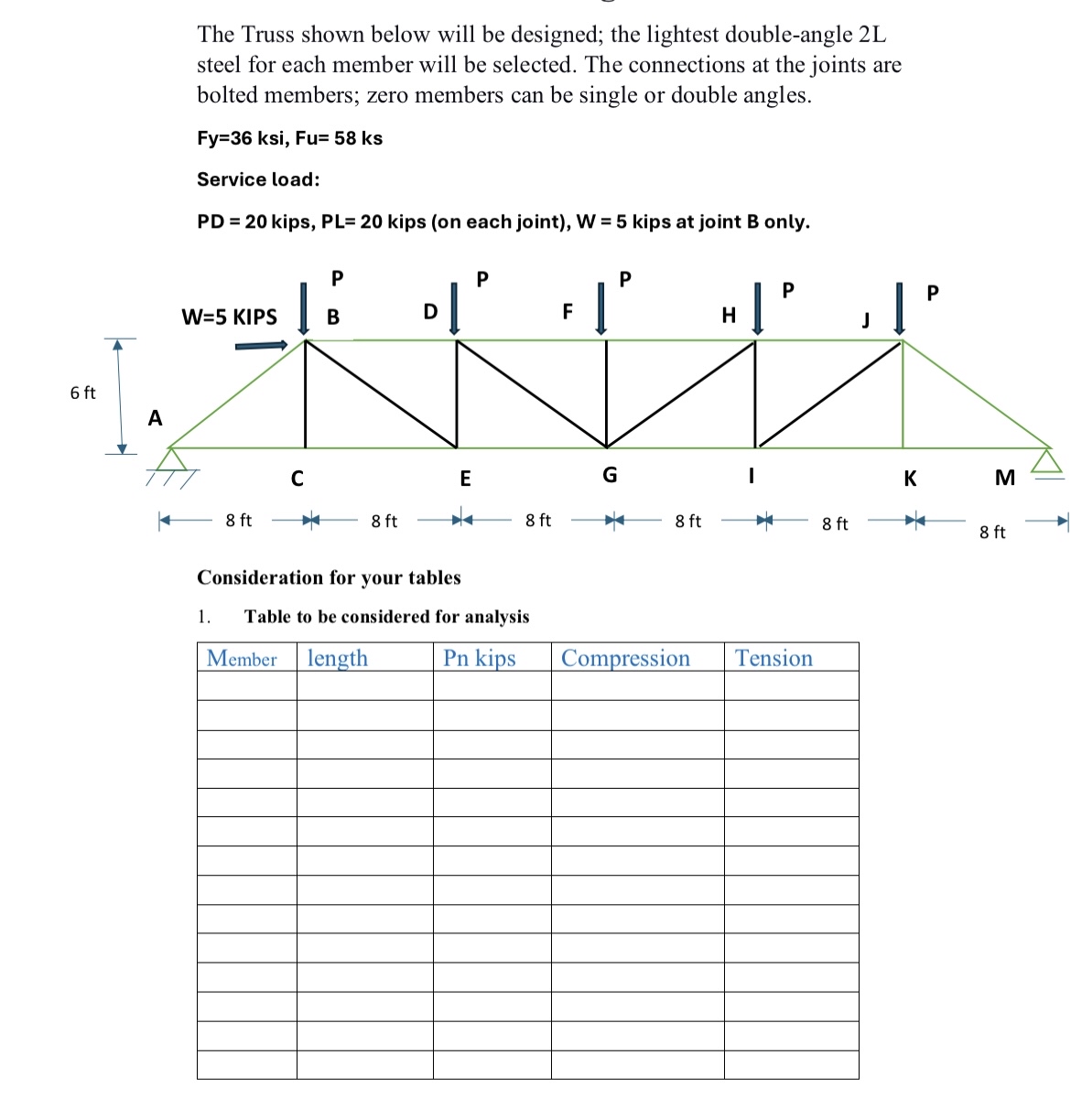

The Truss shown below will be designed; the lightest double-angle 2 L steel for each member will be selected. The connections at the joints are bolted members; zero members can be single or double angles.
Fy=36 ksi, Fu=58 ks
Service load PD=20 kips, PL=20 kips (on each joint),W=5kips at joint B only.
Please
Find the reactions and axial foces in the truss
analyze the truss using the chart below.
Label tension,compression, and zero force members as well
The Truss shown below will be designed; the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
