Question: The truth table for a Boolean expression is shown below: 1. Write the Boolean expression for F in sum-of- products form. 2. Write a simplified

The truth table for a Boolean expression is shown below: 1.

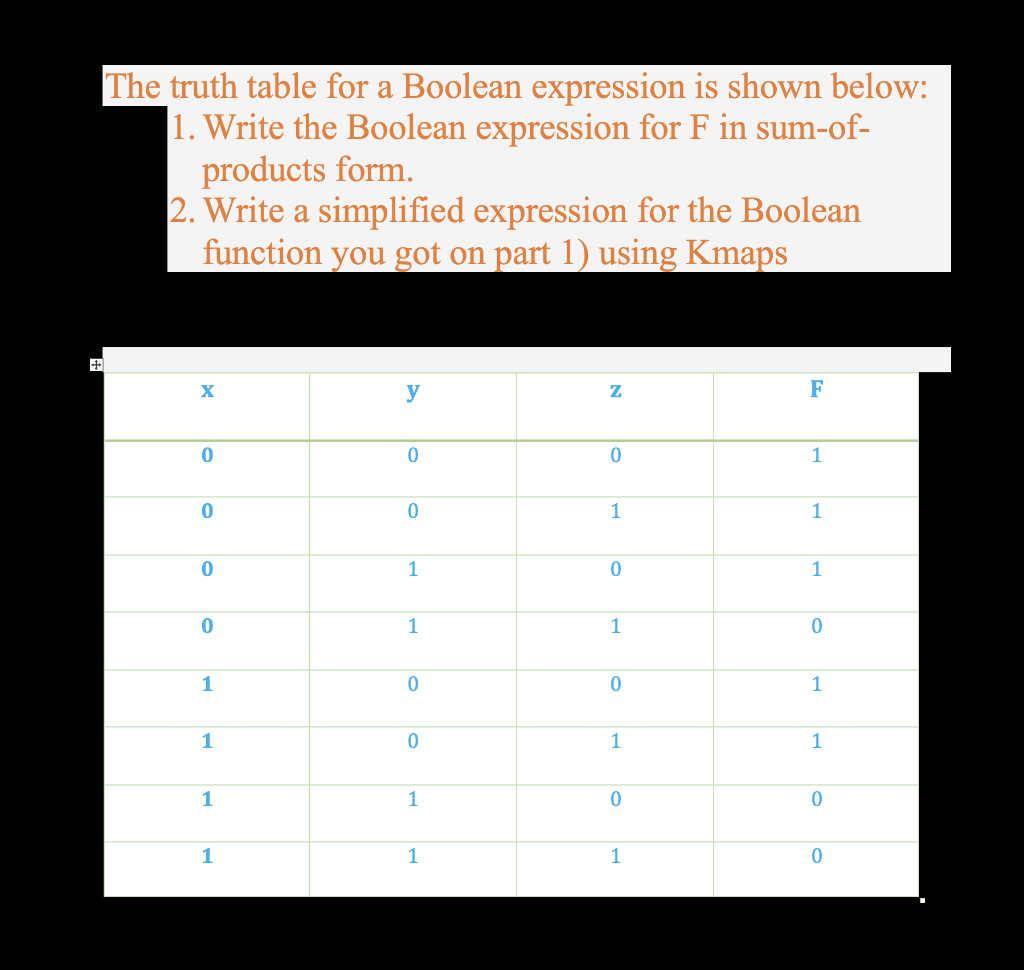

The truth table for a Boolean expression is shown below: 1. Write the Boolean expression for F in sum-of- products form. 2. Write a simplified expression for the Boolean function you got on part 1) using Kmaps y Z F 0 0 0 1 0 0 1 1 0 1 0 1 0 1 1 0 1 0 0 1 1 0 1 1 1 1 0 0 1 1 1 0
