Question: timescale lns / Ips module mainfunction (input a,b,c, output y); assign y=(a&b) I (alc); endmodule timescale Ins / Ips module testbench; reg a,b,c; mainfunction dt(.a(a),

"timescale lns / Ips module mainfunction (input a,b,c, output y); assign

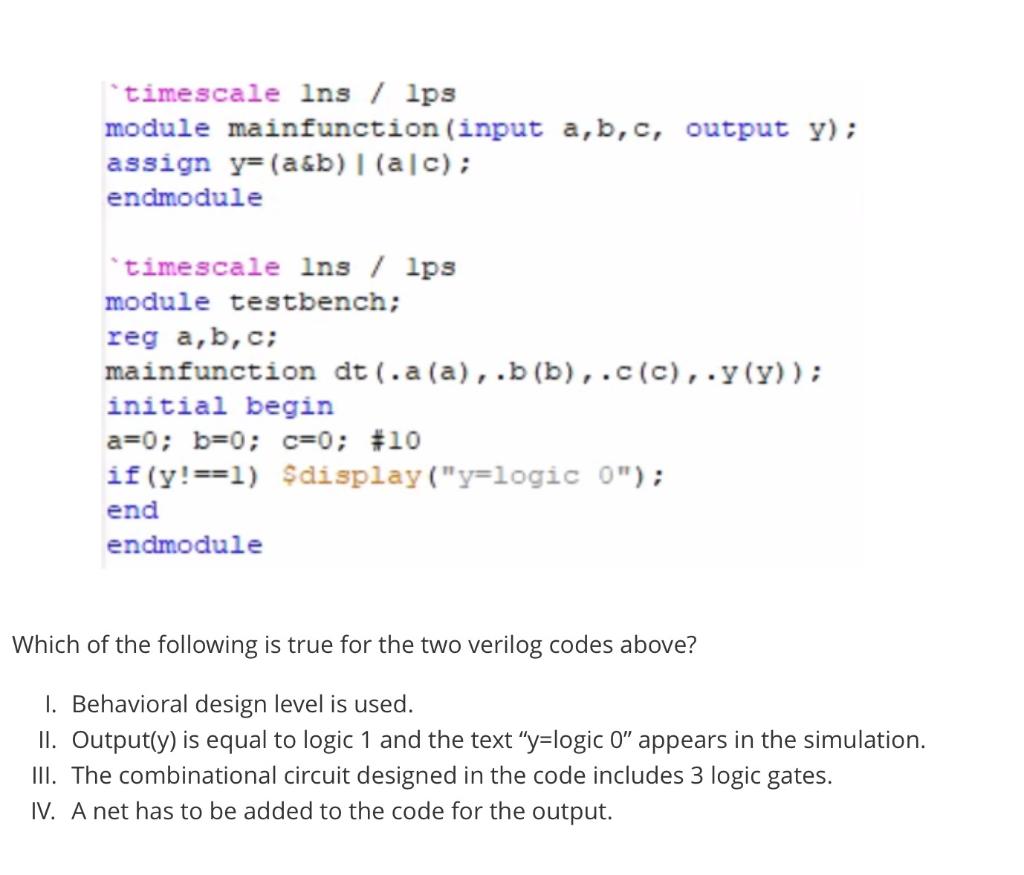

"timescale lns / Ips module mainfunction (input a,b,c, output y); assign y=(a&b) I (alc); endmodule "timescale Ins / Ips module testbench; reg a,b,c; mainfunction dt(.a(a), .b(b),.c(c), .y()); initial begin a=0; b=0; c=0; #10 if(y!==1) $display("v=logic "); end endmodule Which of the following is true for the two verilog codes above? 1. Behavioral design level is used. II. Output(y) is equal to logic 1 and the text "y=logic O" appears in the simulation. 0 III. The combinational circuit designed in the code includes 3 logic gates. IV. A net has to be added to the code for the output

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

"timescale ins / Ips module mainfunction (input a, b, c, output y): assign y=(ab) (alc): endmodule "timescale ins / Ips module testbench; reg a,b,c; mainfunction dt(.a(a)..b(b), (c),y()); initial...

timescale ins / lps module mainfunction (input a, b, c, output Y); assign y=(a&b) I (ac); endmodule timescale lns / Ips module testbench; reg a,b,c; mainfunction dt (.a (a),.b(b),.c(c), y(Y));...

Which of the following is true for the two verilog codes above? sum is equal to a XNOR b. The testbench part runs for 40 nano seconds. Gate design level is used in the code. "timescale lns / Ips...

Which of the following is true for the above 2 verilog codes? Gate design level is used in the code. 2x1 Multiplexer is designed in the code. All nets in the codes must be defined in the testbench...

timescale Ins / Ips module ha (input a, b, output sum, carry); assign sum=a*b; assign carry=a&b; endmodule "timescale ins / Ips module testbench(); reg a, b; wire sum, carry; integer i; ha dt (.a(a),...

ELEC 3651 Lab Verilog Introduction The purpose of this exercise is to learn: 1.How to connect simple input and output devices to an FPGA chip and implement acircuit that uses these devices. We will...

"timescale Ins / Ips module mainfunction (input a,b,c, output y); assign y=(a&b) I (alc); endmodule "timescale Ins / lps module testbench; reg a,b,c; mainfunction dt(.a(a),.b(b),.c(c),.y()); initial...

Which of the following is true for the two verilog codes above? Behavioral design level is used. Output(y) is equal to logic 1 and the text y=logic 0 appears in the simulation. The combinational...

I,II I,II,III Only II I,III timescale ins / lps module ha (input a, b, output sum, carry); assign sum=a*b; assign carry=a&b; endmodule "timescale Ins/ lps module testbench (); reg a, b; wire sum,...

hw 7 elearning file Alu.sv module ALU ( Result , N , Z , C , V , A , B , ALUcontrol ) ; input [ 7 : 0 ] A , B; input [ 1 : 0 ] ALUcontrol; output [ 7 : 0 ] Result; output N , Z , C , V; wire [ 7 : 0...
