Question: Use the attached Activity-on-Arrow (AOA) or Activity-on-Node(AON) project networks to do the following: 1. Calculate the Early Start, Early Finish. Late Start, and Late Finish

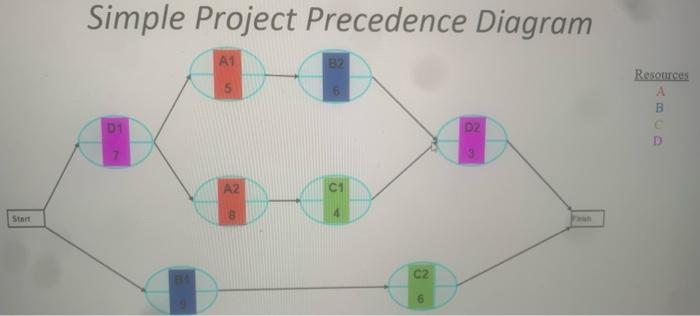

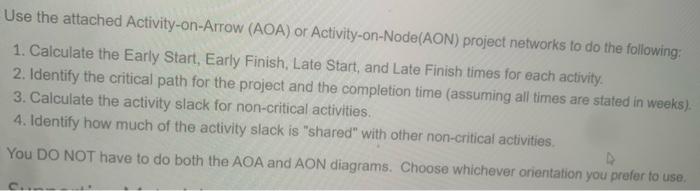

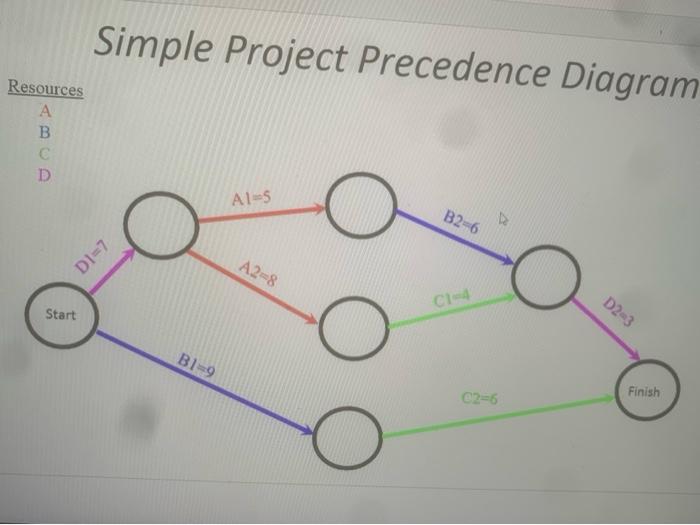

Use the attached Activity-on-Arrow (AOA) or Activity-on-Node(AON) project networks to do the following: 1. Calculate the Early Start, Early Finish. Late Start, and Late Finish times for each activity. 2. Identify the critical path for the project and the completion time (assuming all times are stated in weeks). 3. Calculate the activity slack for non-critical activities 4. Identify how much of the activity slack is "shared with other non-critical activities. You DO NOT have to do both the AOA and AON diagrams. Choose whichever orientation you prefer to use, Simple Project Precedence Diagram A1 B2 Resources B D1 D2 C D A2 C1 Start 8 C2 6 Simple Project Precedence Diagram Resources B D Al-S B2-6 DI=7 A28 CI-4 D2-3 Start O B1-9 Finish 02=6
