Question: Use the figure below with F = { 2 0 0 hat ( i ) - 2 0 0 hat ( j ) + 1

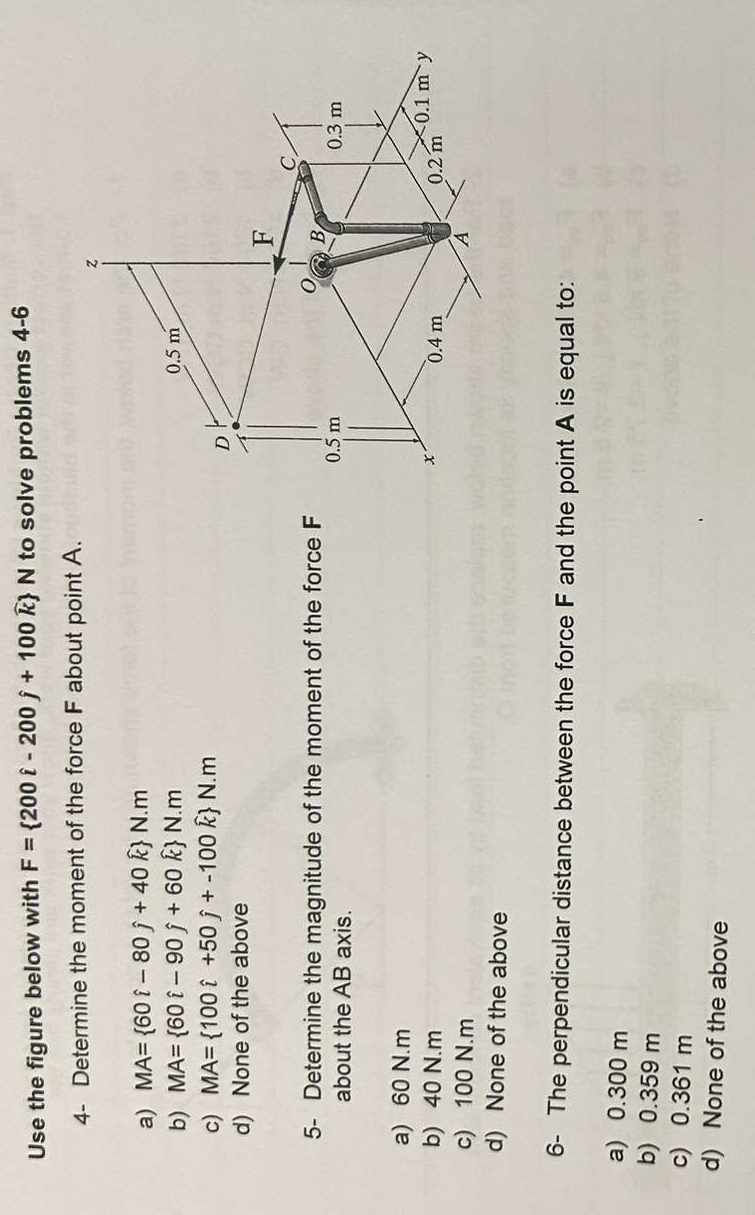

Use the figure below with F={200hat(i)-200hat(j)+100widehat(k)}N to solve problems 4-6
4- Determine the moment of the force F about point A.
a)MA={60hat()-80hat()+40hat(k)} N.m
b)MA={60hat()-90hat()+60hat(k)} N.m
c)MA={100hat()+50hat()+-100hat(k)}N.m
d) None of the above
5- Determine the magnitude of the moment of the force F about the AB axis.
a)60N.m
b)40N.m
c)100N.m
d) None of the above
6- The perpendicular distance between the force F and the point A is equal to:
a)0.300 m
b)0.359 m
c)0.361 m
d) None of the above
Use the figure below with F = { 2 0 0 hat ( i ) -
