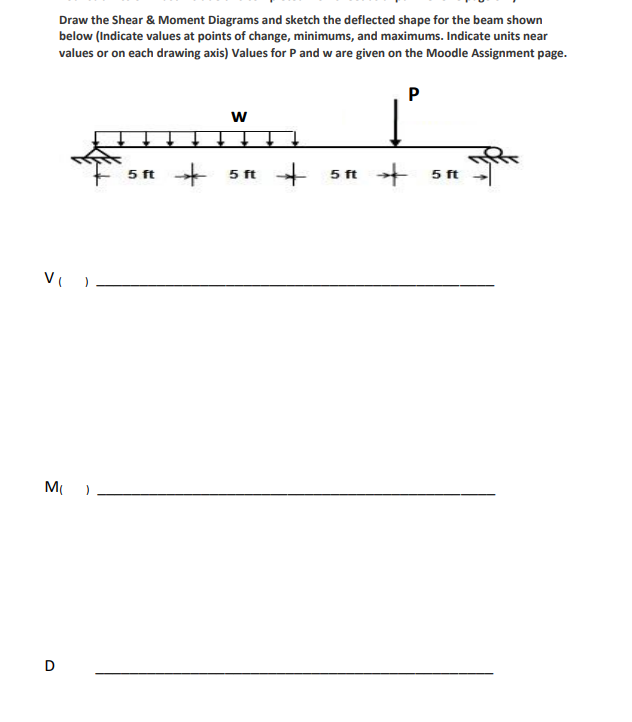

Use these values with the worksheet below:Draw the Shear & Moment Diagrams and sketch the deflected shape for the beam shown

below $($Indicate values at points of change, minimums, and maximums. Indicate units near

values or on each drawing axis$)$ Values for $P$ and $w$ are given on the Moodle Assignment page.

$M_1$

$P=6$kips,$W=1000lb\frac{s}{f}$tModule $5/6$ Assignment: Shear and Moment Diagram, CM $2501/2500$ Name: Draw the Shear & Moment Diagrams and sketch the defected shape for the beams shown below $($Indicate values at points of change and minimums and maximums. Also indicate units near values or on each drawing axis$)$ w$=650$ lbs $/$ ft$,$ P$=3\mathrm{.}5$ kips M$\_()$ D
