Question: Using Matlab, Simulink - In the PID - controlled mass - damper - spring system model, where the mass ( m ) = 1 .

Using Matlab, Simulink-

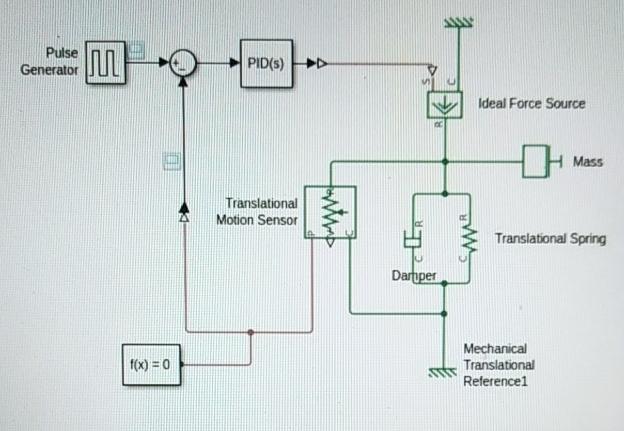

In the PID-controlled mass-damper-spring system model, where the mass(m)=1.8kg, damper (b)=50N s/m, spring(k)=200N/m, and Force(F)=1N....
Find the impact of different PID parameters on the simulation results and explain the results (including steady state errors)
kp=300
kd=10
ki=70
 Using Matlab, Simulink- In the PID-controlled mass-damper-spring system model, where the
