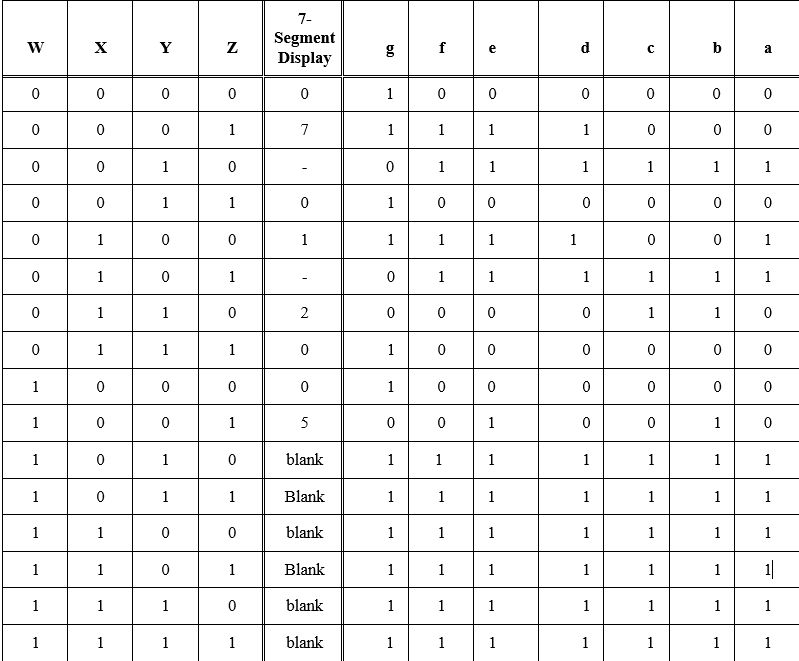

Question: Using the truth table attached, write the VHDL entity and architecture for the Birthday Date Displayer using a CASE statement. This implementation will have four

Using the truth table attached, write the VHDL entity and architecture for
the Birthday Date Displayer using a CASE statement. This implementation will
have four inputs, but only one output. The output will be a
STD_LOGIC_VECTOR that represents segments g-a of the seven segment display.
Using the truth table attached, write the VHDL

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
